7/8" MASCHIO-FEMMINA DeviceNet Thin Cables

Home » Prodotti » Connessione » Moldizzati » 7/8 con cavo » 7/8" DeviceNet » 7/8″ MASCHIO-FEMMINA DeviceNet Thin Cables

Richiedi informazioni
Request informations

7/8″ MASCHIO-FEMMINA DeviceNet Thin Cables

PUR NERO

Download datasheet
DeviceNet Thin Cables
0935 253 301/… M: Double-ended with 7/8” male connector and 7/8” female connector, 5 poles

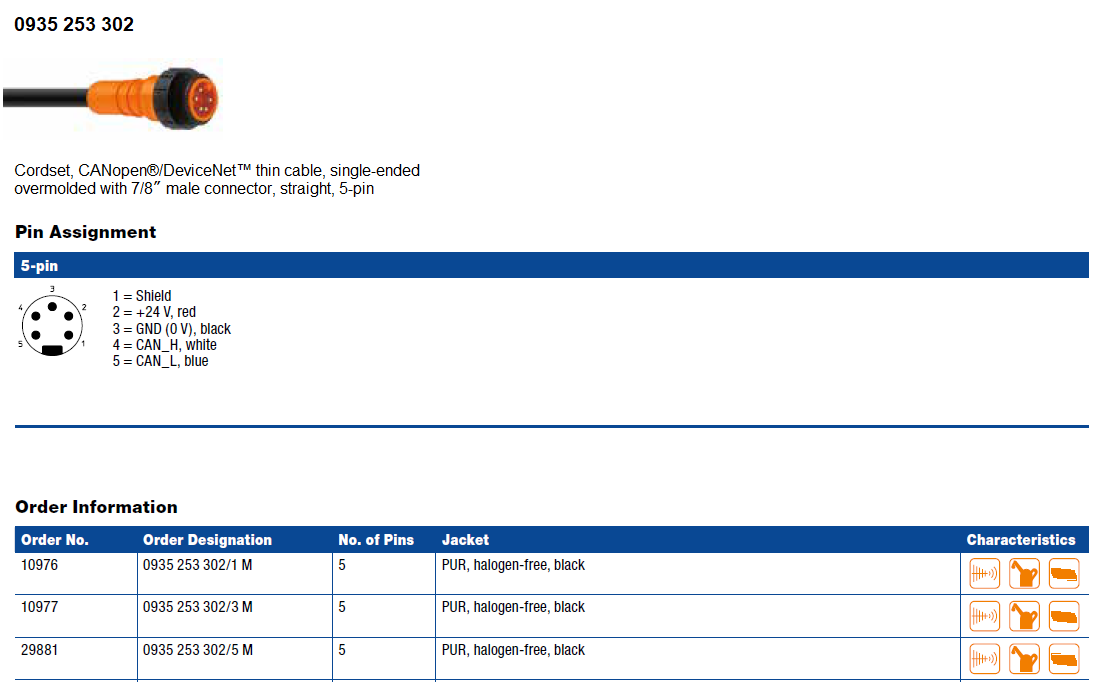

0935 253 302/… M: Single-ended with7/8” male connector, 5 poles

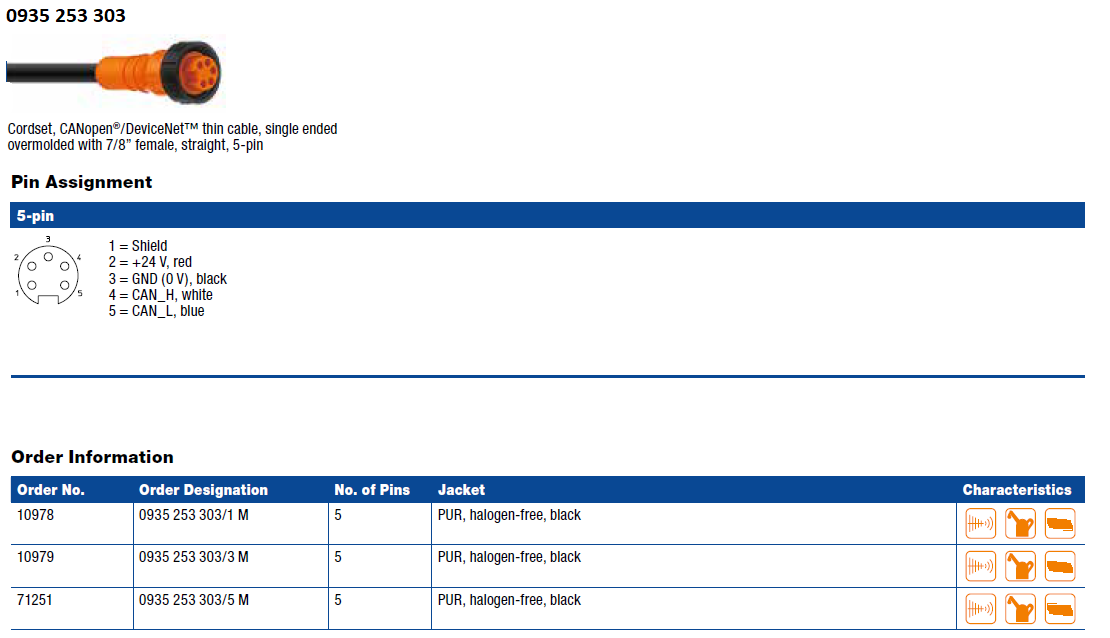

0935 253 303/… M: Single-ended with7/8” female connector, 5 poles

Categorie: 7/8 con cavo, 7/8" DeviceNet, Bus System, CAN, Connessione, DeviceNet, Moldizzati Tag: CAN BUS, DEVICENET

CONDIVIDI / SHARE

Descrizione

Temp: -40 °C to +90 °C, mind cable temperature range
Current rating 4 A
Voltage rating 250 V
Cordset, CANopen®/DeviceNet™ thin cable, single-ended overmolded with 7/8” male connector, straight, 5-pin
Pin 1 Shield
Pin 2 + 24 V red
Pin 3 GND (0 V) black
Pin 4 CAN_H white
Pin 5 CAN_L blue

Disposizione dei PIN
