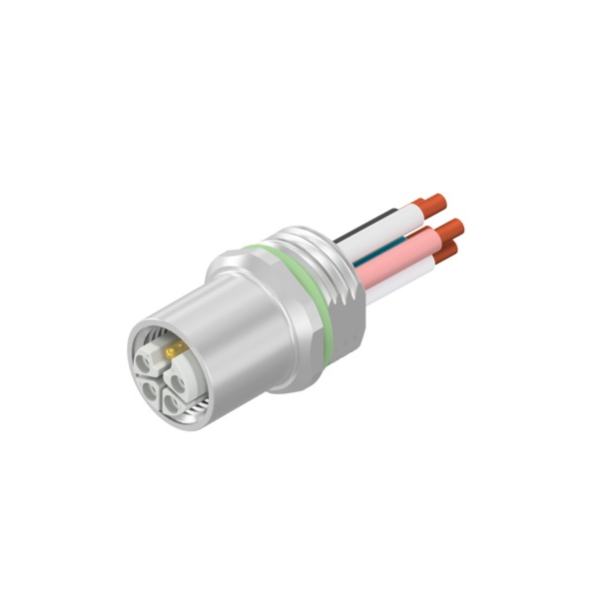

B17 Hybrid connectors receptacles back panel long version power female 5×2.5mm² + 4xAWG22
B17 Hybrid connectors receptacles back panel long version power female 5×2.5mm² + 4xAWG22
Download datasheet
57-22006 ENP – 17 – 1 – FSH1Pbu4PEDst4 – 45S – RS8.36 – 0,5 / G6 / 150 / 034 B17 Hybrid receptacles back panel mounting, wire termination, long version, power female, ethernet male, poles 5+4, sez. pwr 1,5mmq, 22AWG, cable PPE+PUR green, Cat5e, L=0,5m
57-22007 ENP – 17 – 1 – FSH1Pbu4PEDst4 – 45S – RS8.36 – 1 / G6 / 150 / 034 B17 Hybrid receptacles back panel mounting, wire termination, long version, power female, ethernet male, poles 5+4, sez. pwr 1,5mmq, 22AWG, cable PPE+PUR green, Cat5e, L=1m
57-22008 ENP – 17 – 1 – FSH1Pbu4PEDst4 – 45S – RS8.36 – 2 / G6 / 150 / 034 B17 Hybrid receptacles back panel mounting, wire termination, long version, power female, ethernet male, poles 5+4, sez. pwr 1,5mmq, 22AWG, cable PPE+PUR green, Cat5e, L=2m
Descrizione
General Data
Product style Receptacle
Size A-side B17
Size B-side RJ45 + Wire power
Gender connector housing A-side Male
Gender power contacts A-side Power= Female / Ethernet= Male
No. of poles power contacts A-side 4-pos.+PE
No. of poles data contacts 4-pos.
Hybrid Length cable/wire 0,5-1-2m
Mounting style Back panel mounting
Type receptacle housing Short version
Locking type Bajonett
Technical Data
Rated voltage power contacts 600 V AC/ DC
Rated voltage data contacts 50 V AC/ DC
Current Rating power contacts 14 A
Current rating data contacts 1,5 A
Wire cross section power contacts 1,5 mm²
Wire cross section data contacts AWG22
Degree of protection IP67
Performance data core 100 MHz Cat5
