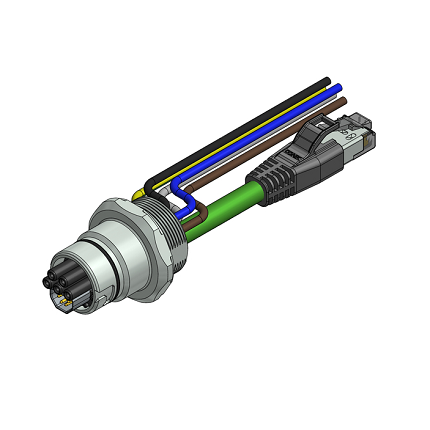

B17 Hybrid connectors receptacles front panel long version power female
B17 Hybrid connectors receptacles front panel long version power female
Download datasheet
57-02612 ENP-17-1-FS1Pbu2PEDst4-45SRS8.33-0,5/0,5/G6/150/034 B17 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 3+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=0,5m
57-02613 ENP-17-1-FS1Pbu2PEDst4-45SRS8.33-1/1/G6/150/034 B17 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 3+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=1m
57-02614 ENP-17-1-FS1Pbu2PEDst4-45SRS8.33-2/2/G6/150/034 B17 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 3+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=2m
Download datasheet
57-02621 ENP-17-1-FS1Pbu2PEADst4-45SRS8.33-0,5/0,5/G6/250/034 B17 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 3+4, sez. pwr 2,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=0,5m
57-02622 ENP-17-1-FS1Pbu2PEADst4-45SRS8.33-1/1/G6/250/034 B17 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 3+4, sez. pwr 2,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=1m
57-02623 ENP-17-1-FS1Pbu2PEADst4-45SRS8.33-2/2/G6/250/034 B17 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 3+4, sez. pwr 2,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=2m
Download datasheet
57-02630 ENP-17-1-FS1Pbu3PEDst4-45SRS8.33-0,5/0,5/G6/150/034 B17 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 4+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=0,5m
57-02631 ENP-17-1-FS1Pbu3PEDst4-45SRS8.33-1/1/G6/150/034 B17 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 4+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=1m
57-02632 ENP-17-1-FS1Pbu3PEDst4-45SRS8.33-2/2/G6/150/034 B17 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 4+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=2m
Download datasheet
57-02639 ENP-17-1-FS1Pbu4PEDst4-45SRS8.33-0,5/0,5/G6/150/034 B17 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 5+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=0,5m
57-02640 ENP-17-1-FS1Pbu4PEDst4-45SRS8.33-1/1/G6/150/034 B17 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 5+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=1m
57-02641 ENP-17-1-FS1Pbu4PEDst4-45SRS8.33-2/2/G6/150/034 B17 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 5+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=2m
Descrizione
General Data
Product style Receptacle
Size A-side B17
Size B-side RJ45 + Wire power
Gender connector housing A-side Male
Gender power contacts A-side Power= Female / Ethernet= Male
No. of poles data contacts 4-pos.
Mounting style Front panel mounting
Type receptacle housing Long version
Locking type Bajonett
Technical Data
Rated voltage data contacts 24 V DC
Wire cross section data contacts AWG22
Degree of protection IP67
Performance data core 100 MHz Cat5
