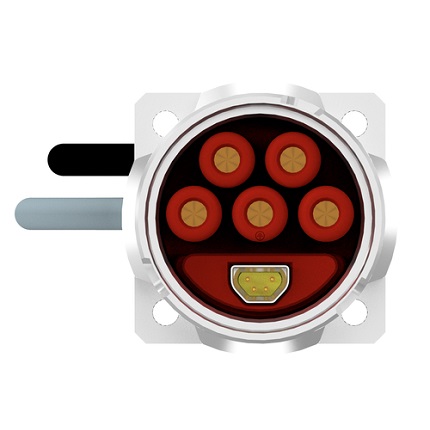

B40 Hybrid connectors receptacles front panel long version square power female 5×16 mm² + 4xAWG22
B40 Hybrid connectors receptacles front panel long version square power female 5×16 mm² + 4xAWG22
Download datasheet
59-22000 ENP – 40 – 1 – FSV1Pbu4PEDst4 – 45S – RS8.36 – 0,5 / G6 / 1600 / 034 B40 Hybrid receptacles front panel mounting, wire termination, long version square, power female, ethernet male, poles 5+4, sez. pwr 16mmq, 22AWG, cable PUR green, Cat5 + PO wire, L=0,5m
59-22001 ENP – 40 – 1 – FSV1Pbu4PEDst4 – 45S – RS8.36 – 1 / G6 / 1600 / 034 B40 Hybrid receptacles front panel mounting, wire termination, long version square, power female, ethernet male, poles 5+4, sez. pwr 16mmq, 22AWG, cable PUR green, Cat5 + PO wire, L=1m
59-22002 ENP – 40 – 1 – FSV1Pbu4PEDst4 – 45S – RS8.36 – 2 / G6 / 1600 / 034 B40 Hybrid receptacles front panel mounting, wire termination, long version square, power female, ethernet male, poles 5+4, sez. pwr 16mmq, 22AWG, cable PUR green, Cat5 + PO wire, L=2m
Descrizione
General Data
Product style Receptacle
Size A-side B40
Size B-side RJ45 + Wire power
Gender connector housing A-side Male
Gender power contacts A-side Power= Female / Ethernet= Male
No. of poles power contacts A-side 4-pos.+PE
No. of poles data contacts 4-pos.
Hybrid Length cable/wire 0,5-1-2m
Mounting style Square receptacle front panel mounting
Type receptacle housing Long version
Locking type Bajonett
Technical Data
Rated voltage power contacts 600 V AC/ DC
Rated voltage data contacts 50 V AC/ DC
Current Rating power contacts 64 A (16 mm²)
Current rating data contacts 1,5 A
Wire cross section power contacts 16 mm²
Wire cross section data contacts AWG22
Degree of protection IP67
Performance data core 100 MHz Cat5
