Distributore ASB-Classic 4 porte LED M12x1 segnale Plastic 54 mm cavo PUR nero
Distributore ASB-Classic 4 porte LED M12x1 segnale Plastic 54 mm cavo PUR nero
Download datasheet

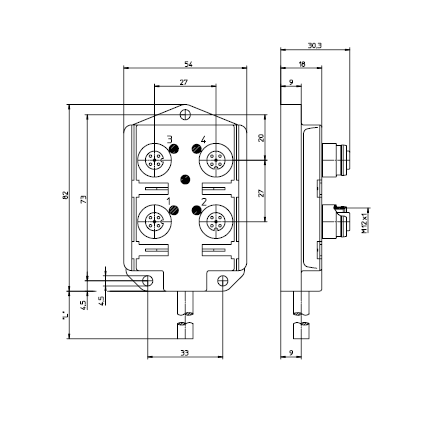

ASB 4/LED 5-4-328/…M – Actuator/sensor distribution box with LED operation and function indicators, top-entry, 4-ports, M12 sockets, 4-poles, 1 signal per socket, with integrated control cable. Control cable is suitable for c-track applications. Plastic, 54 mm
Descrizione
Technnical data
Environmental
Degree of protection IP 67 / NEMA 6P
Operating temperature range -15°C (+5°F) / +80°C (+176°F)
Mechanical
Housing TPU, self-extinguishing
Insert PA GF, self-extinguishing
Contact CuZn, pre-nickeled and 0.8 microns gold-plated
Receptacle shell CuZn, nickel-plated
O-ring FKM
Electrical
Contact resistance ≤5mΩ
Voltage rating 10-30 V DC
Current rating 4 A per port / 12 A max. total
Insulation resistance > 10-9 Ω
Accessories (included)
ZVK 2 dust covers for unused sockets
ZBS 10 attachable labels
