Distributore ASB-M 8 porte LED M12x1 segnale M23 collegamento Plastic 60 mm
Distributore ASB-M 8 porte LED M12x1 segnale M23 collegamento Plastic 60 mm
Download datasheet

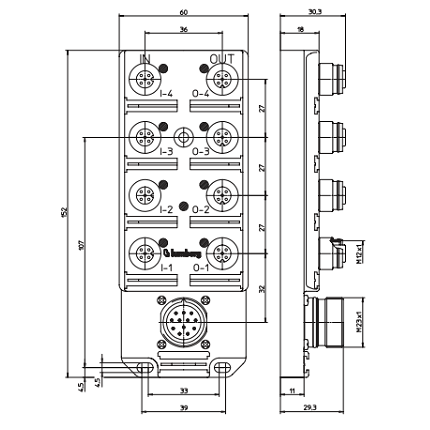

ASBS 8/LED 5-4/4E4A – Pluggable actuator/sensor distribution box with LED operation and function indicators, to connect 4 standard sensors and actuators with separate power supply for inputs and outputs, 8-ports, top-entry, M12 sockets, 4-poles, 1 signals per socket, with M23 quick-disconnect for the control cable. Field attachable type: 12P: RKC 120/13.5 or RKCW 13.5. Plastic, 60 mm
Descrizione
Technnical data
Environmental
Degree of protection IP 67 / NEMA 6P
Operating temperature range -15°C (+5°F) / +80°C (+176°F)
Mechanical
Housing TPU, self-extinguishing
Insert PA GF, self-extinguishing
Contact CuZn, pre-nickeled and 0.8 microns gold-plated
Receptacle shell CuZn, nickel-plated
O-ring FKM
Electrical
Contact resistance ≤5mΩ
Voltage rating 10-30 V DC
Current rating 4 A per port / 12 A max. total
Insulation resistance > 10-9 Ω
Accessories (included)
ZVK 2 dust covers for unused sockets
ZBS 10 attachable labels
