Distributore ASB-R 8 porte M12x2 segnali Metal 60 mm cavo PUR nero
Distributore ASB-R 8 porte M12x2 segnali Metal 60 mm cavo PUR nero
Download datasheet

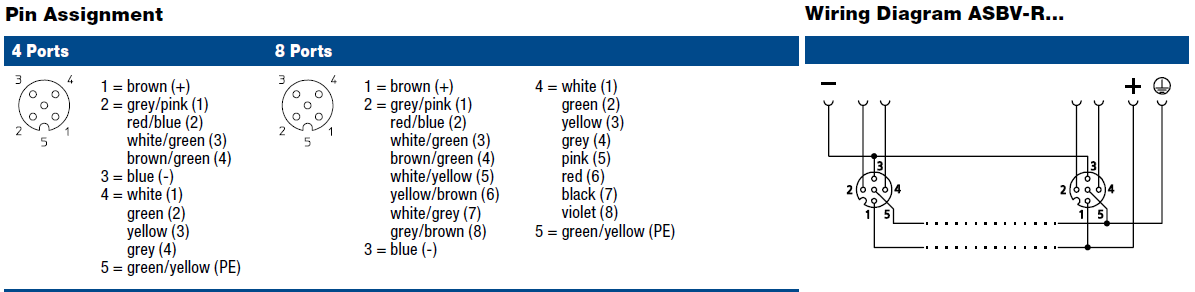

ASBV-R 8 5-242/…M – ASBV-R wired actuator/sensor distributor, 8 x M12 ports, 5-poles, without LED, two signals per socket, ground connection, with integrated control cable, PUR jacket, halogenfree, black. Metal, 60 mm
Descrizione
Technnical data
Environmental
Degree of protection IP65 / IP67
Pollution severity 3
Operating temperature range -40°C / +80°C (dragchain max. 60°C)
Materials
Contact CuZn, pre-nickeled and gold-plated
Contact bearer TPU-GF, self-extinguishing
Housing Zinc die casting
O-ring FKM
Electrical Data
Rated voltage 30 V
Rated current* 4 A per outlet / 10 A max. total; at 40°C
Rated impulse voltage 32 V
Contact resistance ≤5mΩ
Insulation resistance > 10-9 Ω
* only in locked position with its proper counterparts or dust covers
