Distributore ASB-S 10 porte LED M8x1 segnale Plastic 30 mm cavo PUR nero
Distributore ASB-S 10 porte LED M8x1 segnale Plastic 30 mm cavo PUR nero
Download datasheet

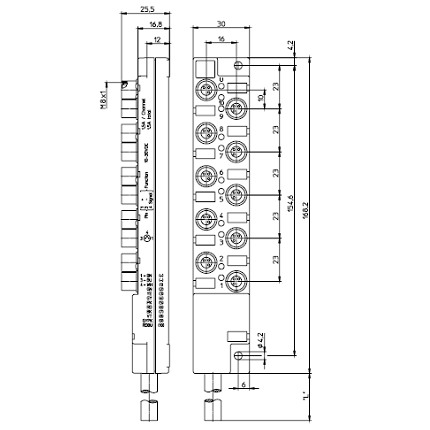

ASBM 10/LED 3-346/…M – Pluggable miniature actuator/sensor distribution box with LED operation and function indicators, top-entry, 10-ports, M8 socket, 3-poles, 1 signal per socket, with integrated control cable. Plastic, 30 mm
Descrizione
Technnical data
Environmental
Degree of protection IP 67 / NEMA 6P
Operating temperature range -25°C (-13°F) / +70°C (+158°F)
Mechanical
Housing PBT
Insert PA, self-extinguishing
Contact CuSn, pre-nickeled and 0.8 microns gold-plated
Receptacle shell Brass, nickel-plated
O-ring FKM
Electrical
Contact resistance ≤5mΩ
Voltage rating 10-30 V DC
Current rating 1.5 A per port
1.5 A max. total
Accessories (included)
ZVKM 2 M8 dust covers for unused sockets
ZBR 5/10 Attachable labels:
4-Ports: 5 pieces
6- and 8-Ports: 10 pieces
10- and 12-Ports: 15 pieces
