    Distributore LioN-Classic interfaccia ad infrarossi 8DI (8x M12) Plastic 60 mm




    Download datasheet

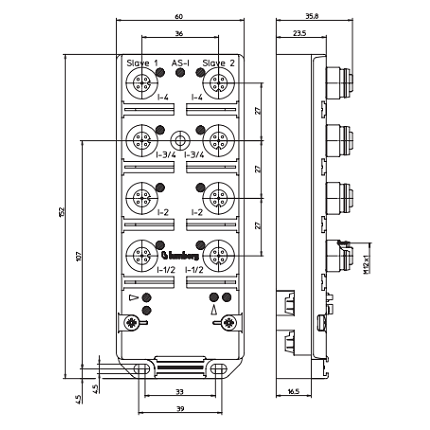

    0910 ASL 412 – LioN-Classic, AS-Interface flat cable modulewith 8 digital inputs to connect standard sensors, combined M12 socket, infrared interface for the addressing, Plastic, 60 mm

    CONDIVIDI / SHARE

    Descrizione

    Technnical data
    Environmental
    Degree of protection IP 67
    Operating temperature range -25°C (-13°F) to +80°C (+176°F)
    Weight 300 g
    Housing material PUR
    Bus system AS-Interface Version 2.1
    AS-Interface profile S 0.A.E
    I/O configuration 0 hex
    ID code 1 hex
    ID2 code (extended ID-code) E hex
    Support A/B addressing yes
    Electronics power supply AS-Interface
    Rated voltage AS-Interface net
    Voltage range 26.5–31.6 V DC
    Power consumption max. 500 mA
    Reverse polarity protection yes
    Indication LED green
    Input power supply
    Voltage range (AS-Interface net) 17–30 V
    Total current of all sensors max. 200 mA
    Short circuit-proof yes
    Inputs Type 2 acc. to IEC 61131-2
    Rated input voltage 24 V DC
    Signal state “1” Us > 11 V / Is > 6 mA
    Signal state “0” Is < 2 mA
    Input circuit p-switching
    Number of digital channels 8
    Channel status indicator LED yellow per channel
    Diagnostic
    Indication LED red
    Included in delivery / Accessories
    Dust covers M12 2 pieces
    Attachable label 10 pieces
