Distributore LioN-Classic Device senza diagnostica 8DI 4DO (8x M12) M23 Power Supply Plastic 60 mm
Distributore LioN-Classic Device senza diagnostica 8DI 4DO (8x M12) M23 Power Supply Plastic 60 mm

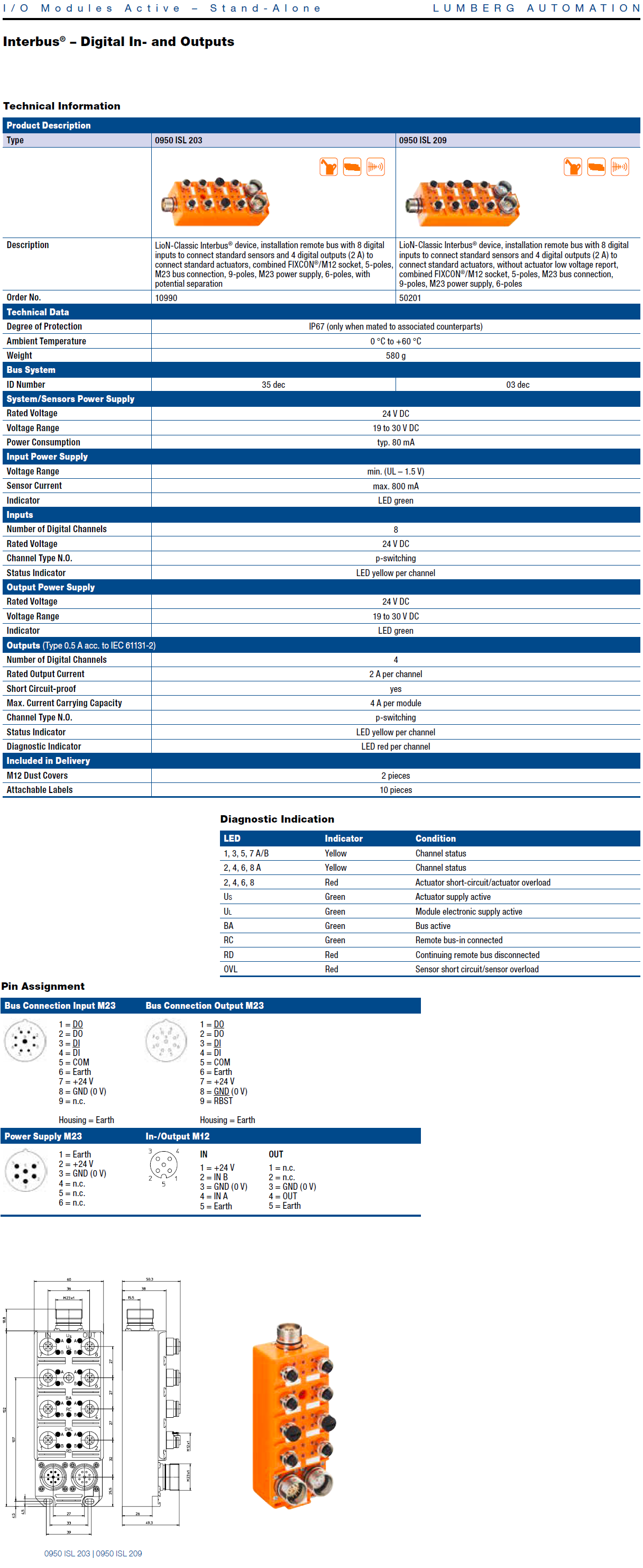

Download datasheet
0950 ISL 209 – LioN-Classic, Interbus Installation Remote Bus terminal with 8 digital inputs (PNP), 4 digital outputs (2A) and M23 bus and power connectors without actuator power diagnostics. Features: Short circuit detection, protection degree IP67 / NEMA 6P, shock and vibration protected by using potting technology, Plastic, 60 mm
Descrizione
Technnical data
Degree of protection IP 67
Operating temperature range 0°C(+32°F) / +60°C (+140°F)
Weight 580 g
Housing PUR
Slave profile Interbus
ID code 03 dec
Power supply of the electronics (UL)
Nominal voltage 24 V DC
Voltage range 19-30 V DC
Current consumption max. 80 mA
Reverse polarity protection yes
Operating indicator (UL) LED, green
Input power supply
Voltage range min. (UL – 1.5 V)
Total current of all sensors max. 800 mA
Short circuit-proof yes
Inputs
Rated voltage 24 V DC
Signal state “1” 11 – 30 V
Signal state “2” -3 – 5 V
Input circuit PNP
Number of digital channels 8
Channel status indicator LED, yellow per channel
Output power supply (US)
Rated voltage 24 V DC
Voltage range 19 – 30 V DC
Potential seperation present
Reverse polarity protection yes/antiparallel diode
Indication LED, green
Outputs Type 2 A acc. to IEC 61131-2
Rated current 2 A per channel
Short-circuit proof yes
Max. output current 8 A per module
Overload-proof yes
Number of digital channels 4
Channel type N.O. PNP
Channel status indicator LED, yellow per channel
Diagnostic indication LED, red per channel
