Distributore LioN-Link 16DIO (8xM12) 7/8” Actuator Supply Plastic 60 mm
Distributore LioN-Link 16DIO (8xM12) 7/8” Actuator Supply Plastic 60 mm
Download datasheet

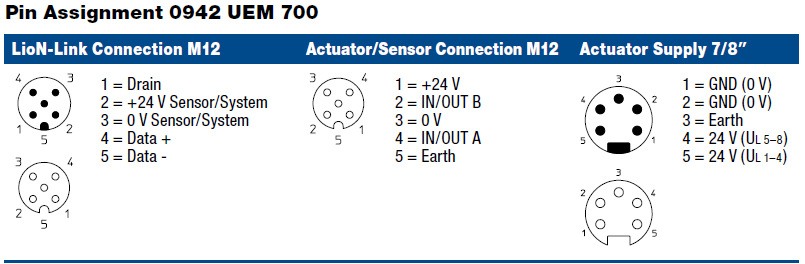

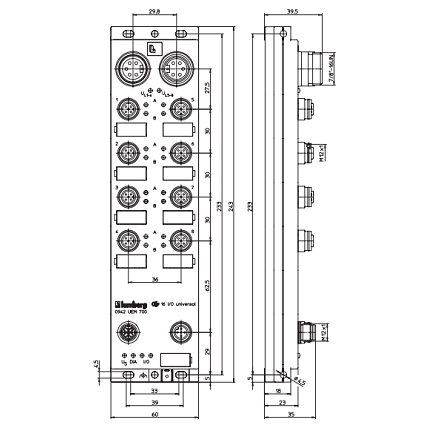

0942 UEM 700 – LioN-Link I/O module with 16 digital I/O channels, channels can be used universally as inputs or outputs, M12 sockets (8 x), 5 poles, 7/8” actuator supply, Plastic, 60 mm
Descrizione
Technnical data
Environmental
Degree of protection IP 67
Operating temperature range -10°C (+14°F) to +60°C (+140°F)
Mechanical
Weight 375 g
Housing material PBT
System/sensors power supply US
Rated voltage 24 V DC
Voltage range 19–30 V DC
Power consumption typ. 100 mA
Input power supply US
Voltage range min. (USystem – 1.5 V)
Sensor current 700 mA
Short circuit proof yes
Indication LED green
Input wiring Type 3 acc. to IEC 61131-2
Rated input voltage 24 V DC
Channel type N.O. p-switching
Number of digital channels max. 16
Channel status indicator LED yellow per channel
Output power supply UL
Rated voltage 24 V DC
Voltage range 19–30 V DC
Reverse polarity protection yes/antiparallel diode
Indication LED green
Output wiring
Rated output current 1.6 A per channel
Short circuit proof yes
Max. output current 9 A (12 A*) per module
* Test proven and approved under the following conditions:
· Looped through sensor / system power supply max. 2.5 A
· Power supply cable STL 204 (5 x1.00 mm2)
· Operating temperature range max. 40°C
Overload proof yes
Number of digital channels max. 16
Channel type N.O. p-switching
Channel status indicator LED yellow per channel
Diagnostic indication LED red per channel
