    Distributore LioN-Link 16DO interfaccia cavo multipolare Plastic 60 mm

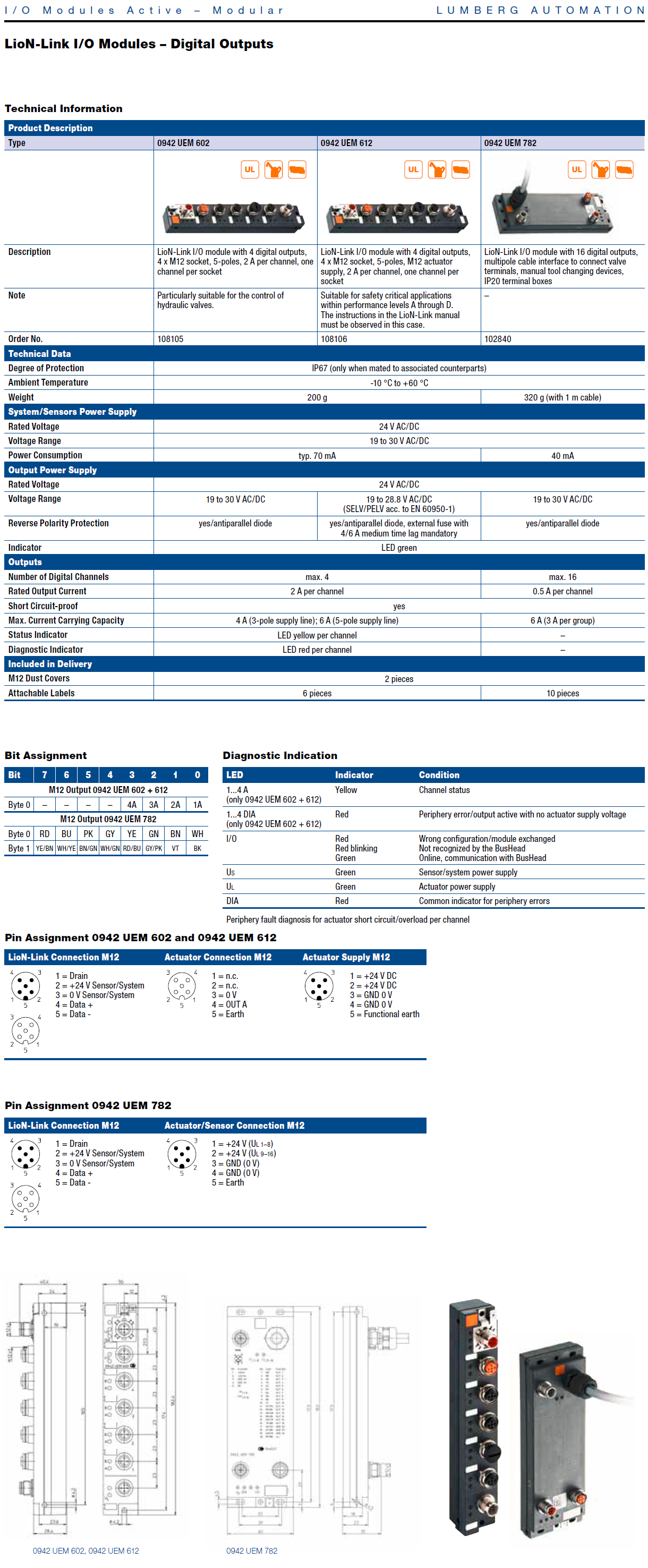

    Download datasheet
    0942 UEM 782 – LioN-Link I/O module with 16 digital outputs, multipole cable interface to connect valve terminals, manual tool changing devices, IP20 terminal boxes, Plastic, 60 mm

    CONDIVIDI / SHARE

    Descrizione

    Technnical data
    Environmental
    Degree of protection IP 67
    Operating temperature range -10°C (+14°F) to +60°C (+140°F)
    Mechanical
    Weight 320 g (with 1 m cable)
    Housing material PBT
    System/sensors power supply US
    Rated voltage 24 V DC
    Voltage range 19–30 V DC
    Power consumption 40 mA
    Output power supply UL
    Rated voltage 24 V DC
    Voltage range 19–30 V DC
    Reverse polarity protection yes/antiparallel diode
    Indication LED green
    Output wiring
    Rated output current 0.5 A per channel
    Short circuit proof yes
    Max. output current 6 A (3 A per group)
    Group 1 Channel 1–8
    Group 2 Channel 9–16
    Overload proof yes
    Number of digital channels max. 16
    Channel type N.O. p-switching
