Distributore LioN-Link 8DI 4DIO (4xM12) M12 I/O-Link Supply Plastic 30 mm
Distributore LioN-Link 8DI 4DIO (4xM12) M12 I/O-Link Supply Plastic 30 mm
Download datasheet

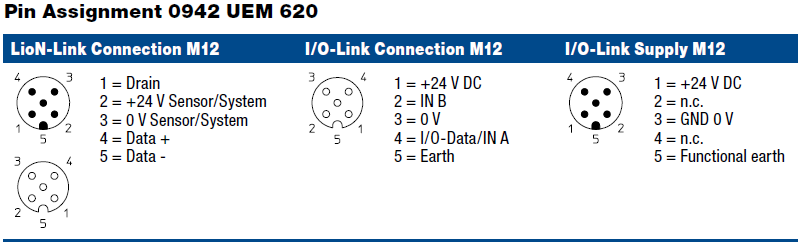

0942 UEM 620 – LioN-Link I/O module with 4 I/O-Link channels, each channel can be configured universally in standard digital I/O mode (SIO mode) or in communications mode, M12 sockets, 4 poles. Only with BusHead 0940 PSL 602 or ProfiNet BusHead 0940 ESL 601, Plastic, 30 mm
Descrizione
Technnical data
Environmental
Degree of protection IP 67
Operating temperature range -10°C (+14°F) to +60°C (+140°F)
Mechanical
Weight 175 g
Housing material PBT
System/sensors power supply US
Rated voltage 24 V DC
Voltage range 19–30 V DC
Power consumption typ. 70 mA
Operating indication LED green
Input power supply US
Voltage range 24 V DC
Sensor current 700 mA/module
Short circuit proof yes
Indication LED green
Input wiring Type 3 acc. to IEC 61131-2
Rated input voltage 24 V DC
Channel type N.O. p-switching
Number of digital channels max. 8
Channel status indicator LED A green/yellow
Diagnostic indication LED red
I/O-Link power supply UL
Rated voltage 24 V DC
Voltage range 1 9–30 V DC
Reverse polarity protection yes/antiparallel diode
I/O-Link
Specification 1.0
Included in delivery/accessories
Dust covers M12, attachable labels
