Distributore LioN-Link BusHead CANopen® Device Slave M12 Power Supply Plastic 30 mm
Distributore LioN-Link BusHead CANopen® Device Slave M12 Power Supply Plastic 30 mm

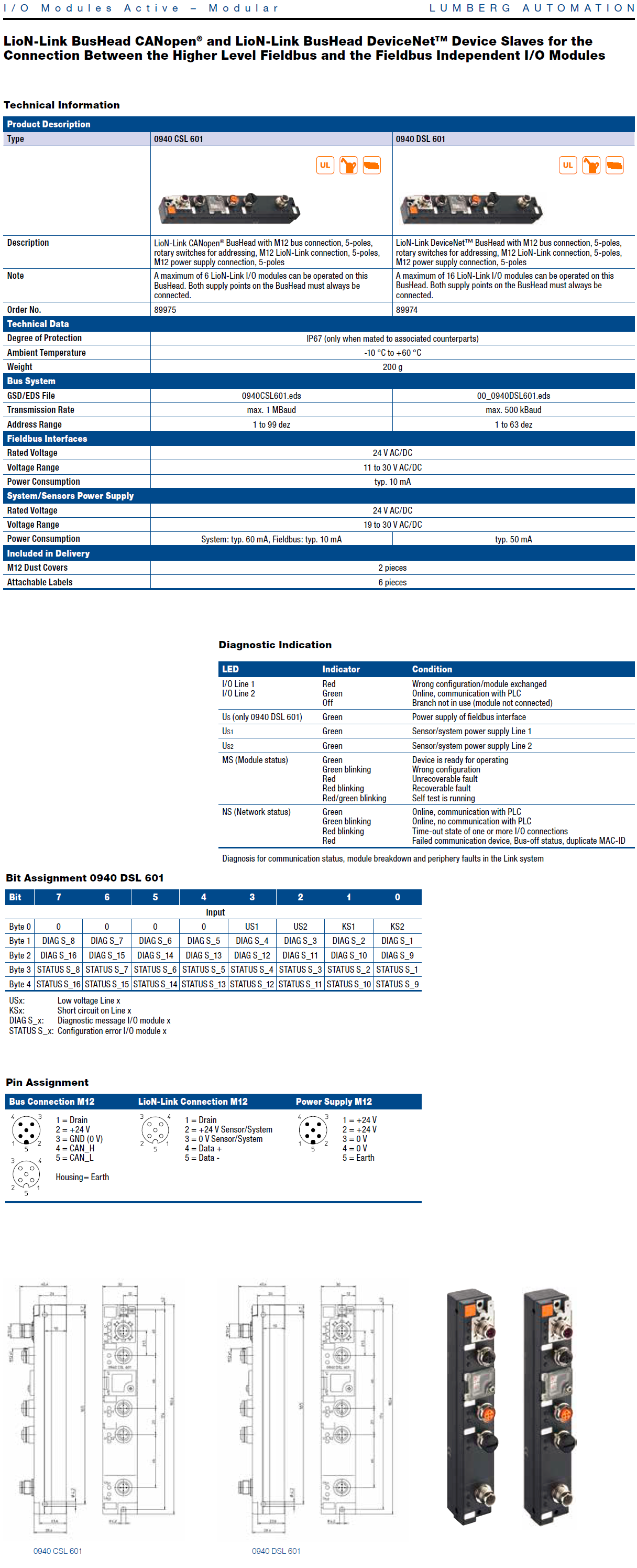

Download datasheet
0940 CSL 601 – LioN-Link BusHead IP 67 bus coupler module for the connection between the higher level fieldbus and the fieldbus independent I/O modules, with M12 bus connection, rotary switches for addressing, M12 LioN-Link connection, M12 power supply connection, Plastic, 30 mm
Descrizione
Technnical data
Environmental
Degree of protection IP 67
Operating temperature range -10°C (+14°F) to +60°C (+140°F)
Mechanical
Weight 200 g
Housing material PBT
Bus system CANopen®
GSD/ EDS file 0940CSL601.EDS
Transmission rate max. 1 MBaud
Address range 1–99 dec
Rotary address switches 1–99 dec
Default address 63 dec
Supply of the fieldbus interface US
Rated voltage 24 V DC
Voltage range 11–30 V DC
Power consumption typ. 10 mA
Reverse polarity protection yes
Indication LED green
System/sensors power supply US1, US2*
Rated voltage 24 V DC
Voltage range 19–30 V DC
Power consumption system: typ. 60 mA /
fieldbus: typ. 10 mA
Reverse polarity protection yes
Indication LED green
Output current per branch max. 3 A
Included in delivery/accessories
Dust covers M12, attachable labels
