Distributore LioN-Link BusHead PROFIBUS Device Slave M12 Power Supply Plastic 30 mm
Distributore LioN-Link BusHead PROFIBUS Device Slave M12 Power Supply Plastic 30 mm

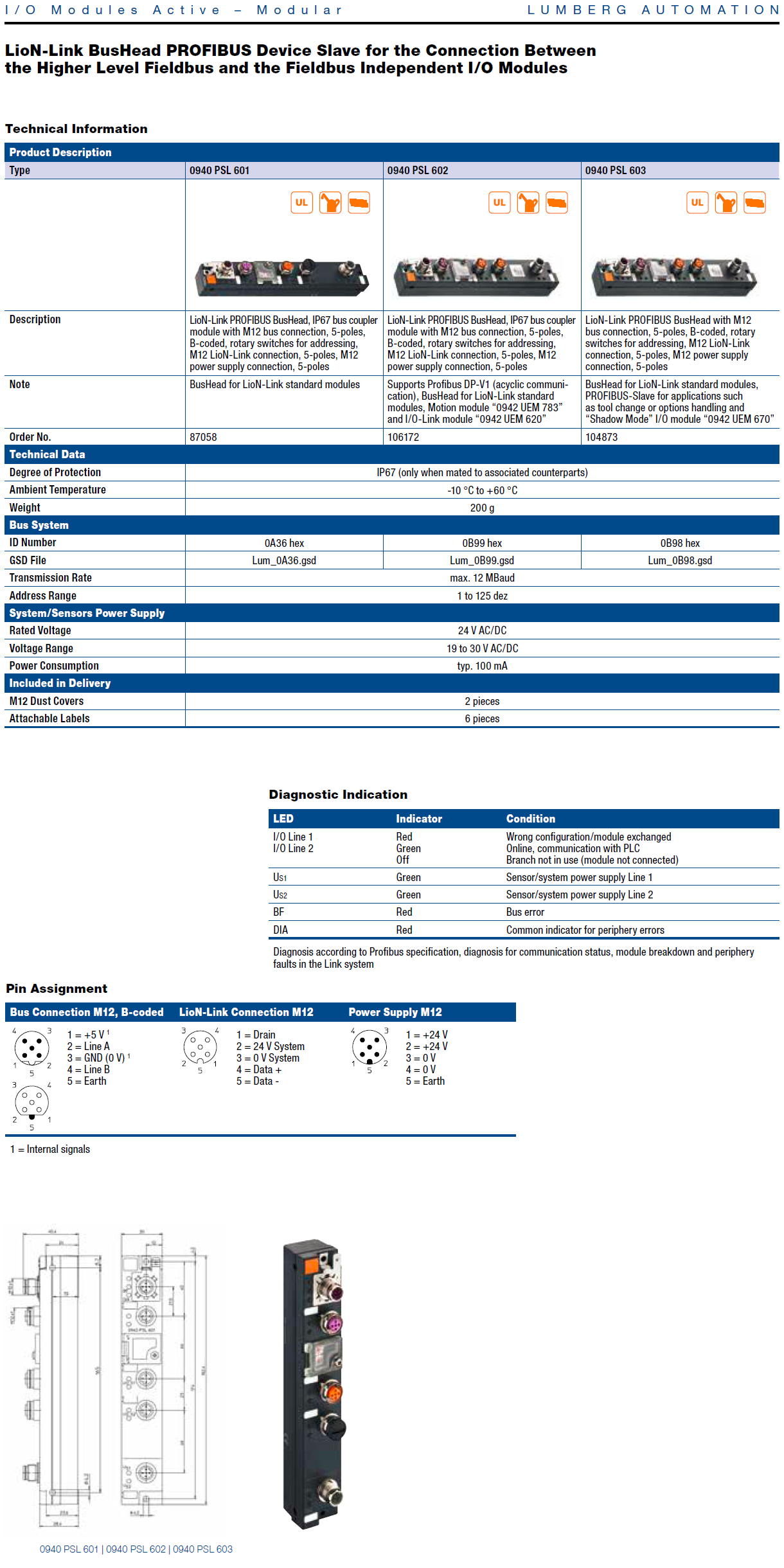

Download datasheet
0940 PSL 601 – LioN-Link BusHead IP 67 bus coupler module for the connection between the higher level fieldbus and the fieldbus independent I/O modules, with M12 bus connection, rotary switches for addressing, M12 LioN-Link connection, M12 power supply connection, Plastic, 30 mm
Download datasheet
0940 PSL 602 – LioN-Link BusHead IP 67 bus coupler module for the connection between the higher level fieldbus and the fieldbus independent I/O modules, with M12 bus connection, rotary switches for addressing, M12 LioN-Link connection, M12 power supply connection. Supports Profibus DP-V1 (acyclic communication) Diagnostic, Plastic, 30 mm
Download datasheet
0940 PSL 603 – LioN-Link BusHead IP 67 bus coupler module for the connection between the higher level fieldbus and the fieldbus independent I/O modules, with M12 bus connection, rotary switches for addressing, M12 LioN-Link connection, M12 power supply connection. Profibus-Slave, for applications such as tool change or options handling with LioN-Link I/O module 0942 UEM 670, Plastic, 30 mm
Descrizione
Technnical data
Environmental
Degree of protection IP 67
Operating temperature range -10°C (+14°F) to +60°C (+140°F)
Mechanical
Weight 200 g
Housing material PBT
Bus system Profibus DP
ID number: 0A36 hex / 0B99 hex / 0B98 hex
GSD file: Lum_0A36.GSD / Lum_0B99.GSD / Lum_0B98.GSD
Transmission rate max. 12 MBaud
Address range 1–125 dec
Rotary address switches 1–99 dec
Default address 99 dec
System/sensors power supply US1, US2*
Rated voltage 24 V DC
Voltage range 19–30 V DC
Power consumption typ. 100 mA
Reverse polarity protection yes
Indication LED green
Output current per branch max. 3 A
Included in delivery/accessories
Dust covers M12, attachable labels
