    Distributore LioN-M Device 8DO (8x M12) M23 Power Supply Plastic 60 mm

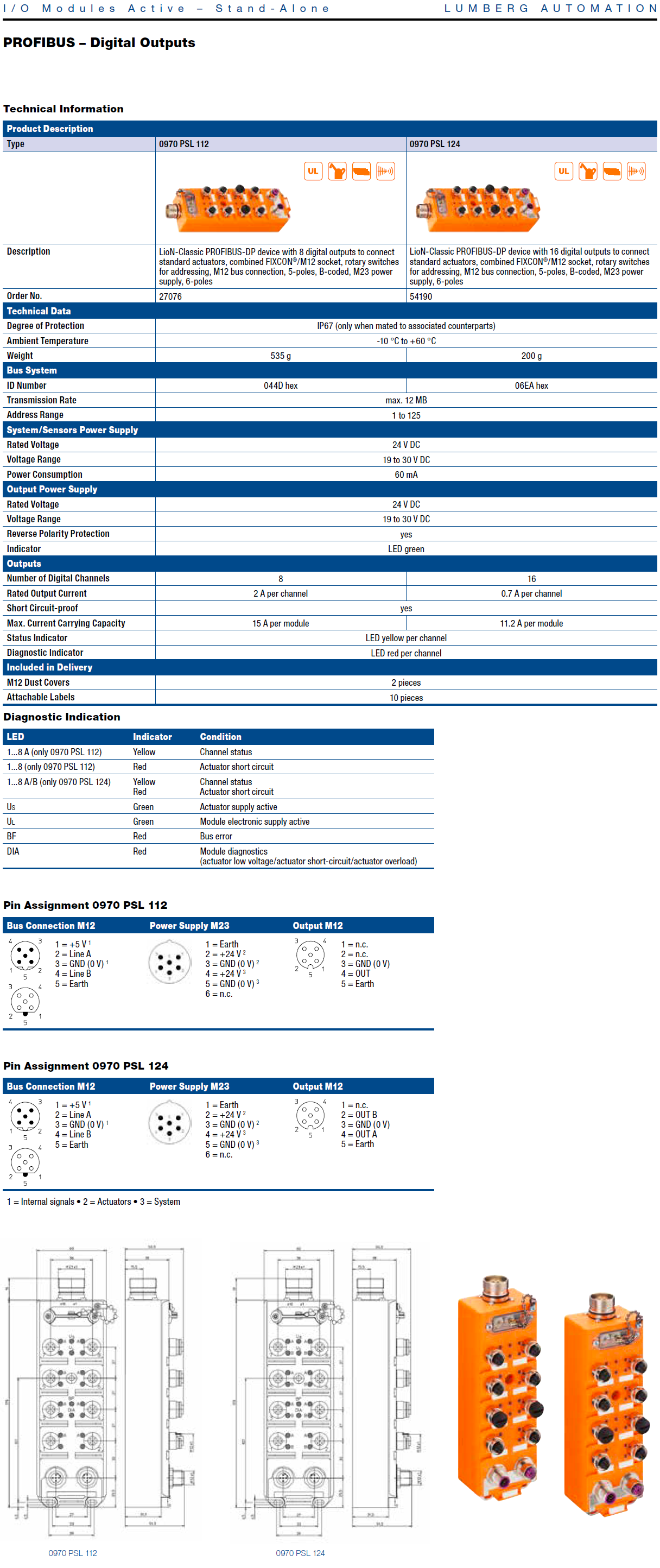

    Download datasheet
    0970 PSL 112 – Profibus-DP device with 8 digital outputs to connect standard actuators, combined M12 socket, rotary switches for addressing, M12 bus connection, M23 power supply, Plastic, 60 mm

    CONDIVIDI / SHARE

    Descrizione

    Technical Data
    Environmental
    Degree of protection IP 67
    Operating temperature range -0°C (+32°F) to +60°C (+140°F)
    Mechanical
    Weight 535 g
    Housing material PUR
    Bus system Profibus
    ID number 044D hex
    GSD file Lum_044D.gsd
    Transmission rate max. 12 MBaud
    Address range 1–126 dec
    Rotary address switches 1–99 dec
    Default address 99 dec
    Output power supply US
    Rated voltage 24 V DC
    Voltage range 19–30 V DC
    Potential separation present
    Reverse polarity protection yes/antiparallel diode
    Indication LED green
    Outputs Type 2 A acc. to IEC 61131-2
    Rated output current 2 A per channel
    Short circuit-proof yes
    Max. output current 15 A per module
    Overload-proof yes
    Number of digital channels 8
    Channel type N.O. p-switching
    Channel status indicator LED yellow per channel
    Diagnostic indication LED red per channel
    Included in delivery/accessories
    Dust covers M12 2 pieces
    Attachable labels 10 pieces
