Distributore LioN-P Master 4DI 8IOL (8x M12) & (8x M8) M12 L-coded Power Supply Metal 30 mm
Distributore LioN-P Master 4DI 8IOL (8x M12) & (8x M8) M12 L-coded Power Supply Metal 30 mm
Download datasheet

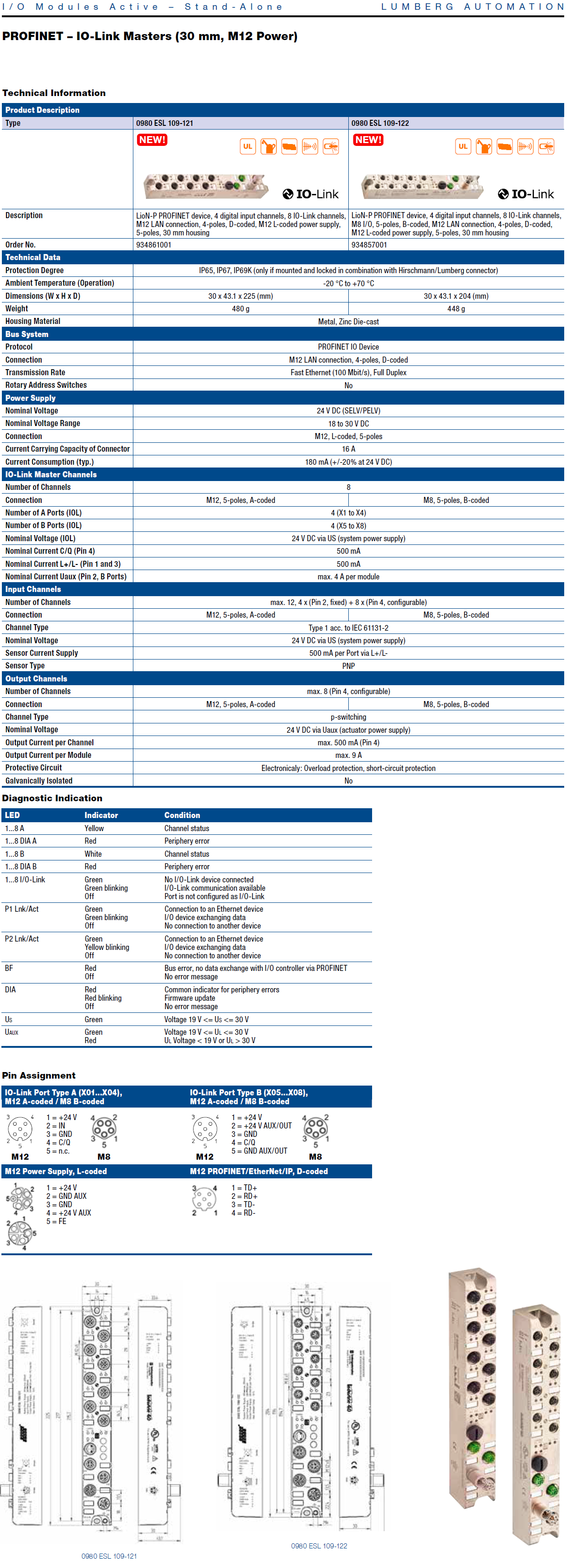

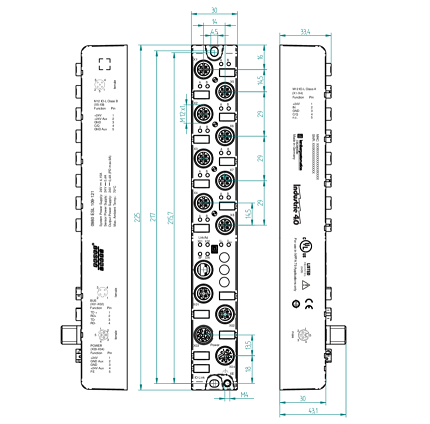

0980 ESL 109-121 – LioN-P, PROFINET IO-Link Master, 4DI 8IOL (8x M12), M12 L-coded Power Supply Metal, 30 mm
Download datasheet

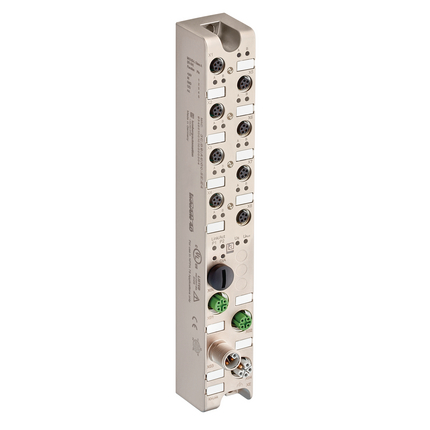

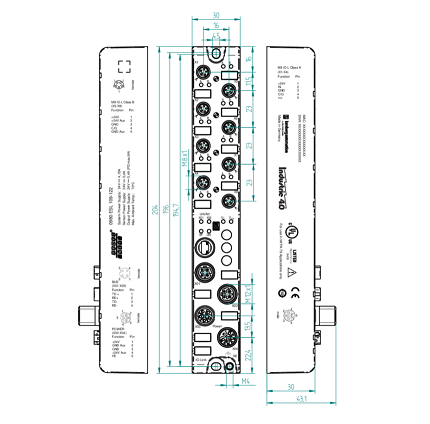

0980 ESL 109-122 – LioN-P, PROFINET IO-Link Master, 4DI + 8IOL (8x M8), M12 L-coded Power Supply, Metal, 30 mm
CONDIVIDI / SHARE
Descrizione
Product Description
Brand: Belden
Product Family: I/O Systems: Active – Standalone
Product Sub Family: LioN-P
Device Type: IO-Link Master
Protocol: PROFINET
I/O Function: 4DI 8IOL

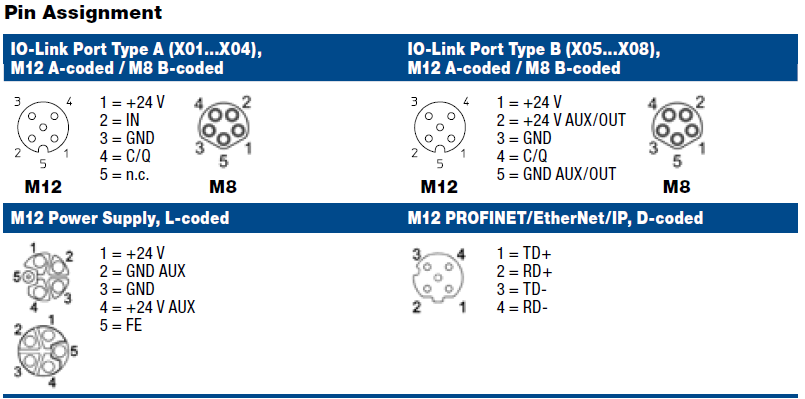

Bus Connection: M12 LAN, 4-poles, D-coded
Power Connection (System Supply): M12 Power, 5-poles, L-coded
I/O Connection: M12, 5-poles, A-coded
I/O Connection: M8, 5-poles, B-coded
I/O Type: IO-Link Master
