Distributore LioN-R 16DI (8x M12) 7/8" Power Supply Metal 60 mm
Distributore LioN-R 16DI (8x M12) 7/8″ Power Supply Metal 60 mm

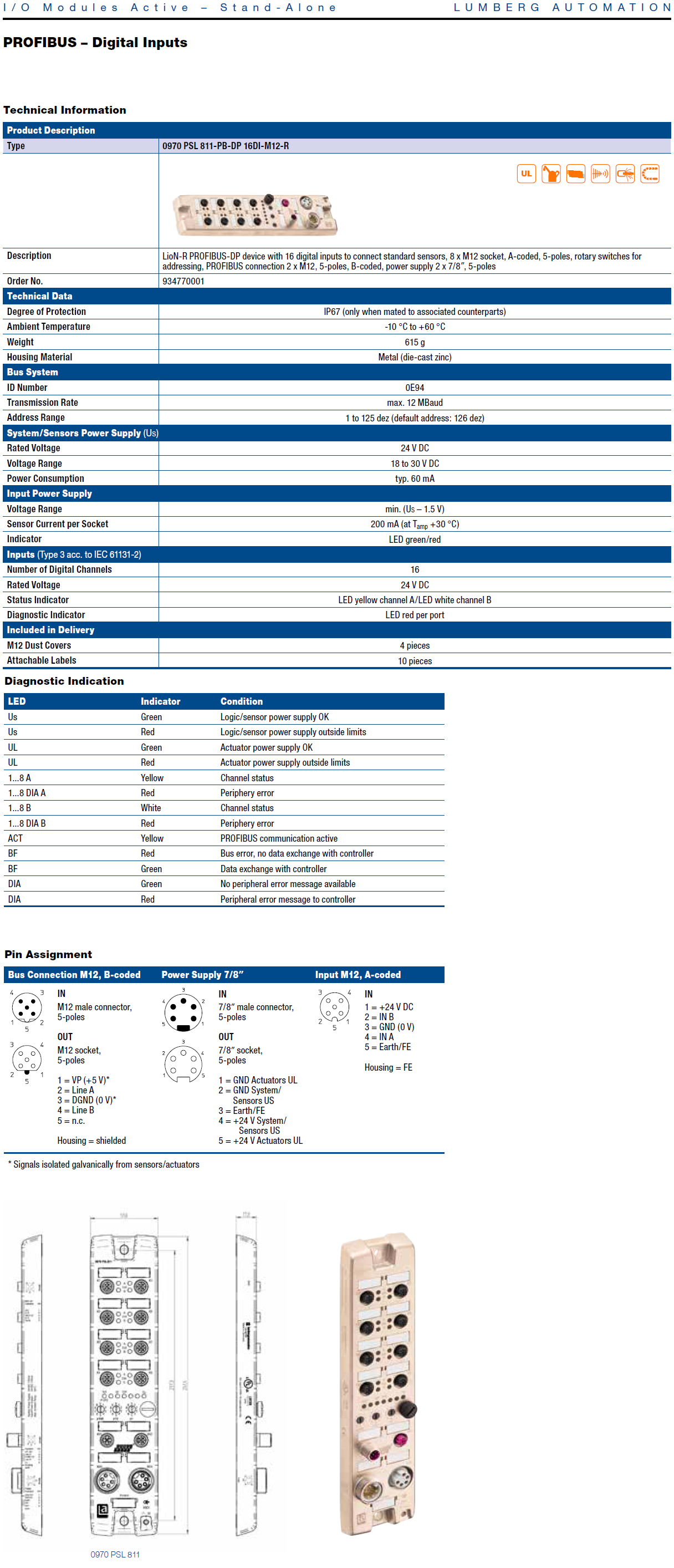

Download datasheet

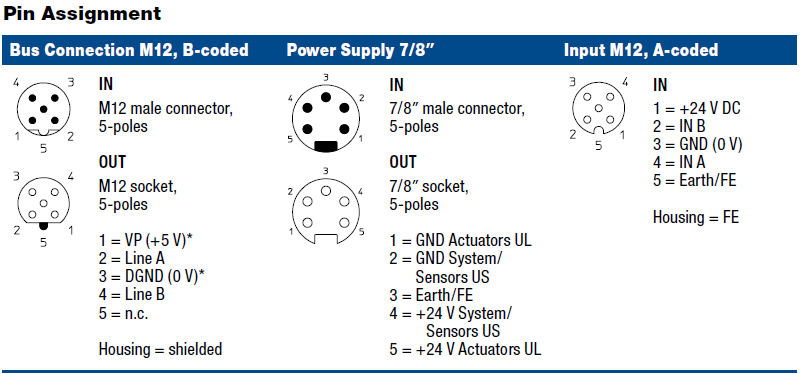

0970 PSL 811-PB-DP 16DI-M12-R, LioN-R PROFIBUS-DP module with 16 digital inputs for connecting standard sensors, 8 x M12 sockets, A-coded, 5 poles, rotary switch for setting addresses, PROFIBUS connection, 2 x M12, 5 poles, B-coded, 2 x 7/8“ power supply, 5 poles
Descrizione
Technical Data
Environmental
Degree of protection IP 67
Operating temperature range -10°C (+14°F) to +60°C (+140°F)
Mechanical
Weight 615 g
Housing material Metal (diecast zinc)
Bus system Profibus
ID number OE94
GSD file Lum_OE94.gsd
Transmission rate max. 12 MBaud
Address range 1–125 dec (default address: 126 dec)
System/Sensors power supply
Rated voltage 24 V DC
Voltage range 18–30 V DC
Power consumption typ. 60 mA
Input power supply US
Voltage range min. (USystem – 1.5 V)
Sensor current/port 200 mA (at Tamp = +30°C)
Indicator LED green/red
Inputs Type 3 acc. to IEC 61131-2
Rated input voltage 24 V DC
Number of digital channels 16
Sensor type PNP (source)
Status indicator LED yellow channel A/LED white channel B
Diagnostic indicator LED red per port
Included in delivery/accessories
Dust covers M12 4 pieces
Attachable labels 10 pieces
