    Distributore ASB-Classic 4 porte LED M8x1 segnale M12 collegamento Plastic 20,6 mm




    Download datasheet

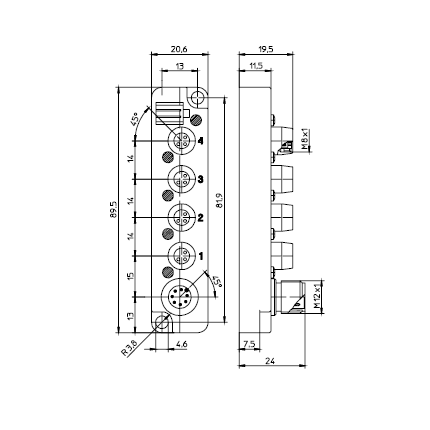

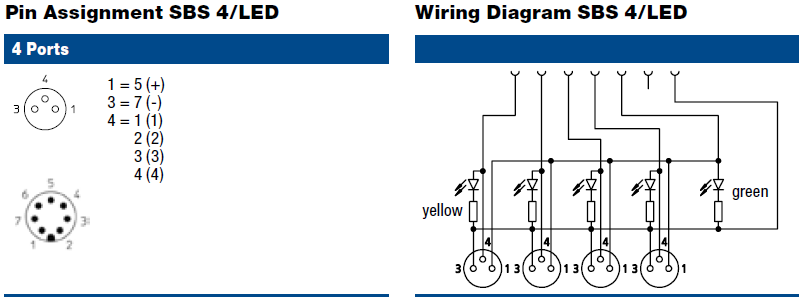

    SBS 4/LED 3 – Pluggable miniature actuator/sensor distribution box with LED operation and function indicators, top-entry, 4-ports, M8 socket, 3-poles, 1 signal per socket, M12 connection for the control cable. Control cable type: RKT 8-6-337 or RKWT 8-6-337. Plastic, 20,6 mm

    CONDIVIDI / SHARE

    Descrizione

    Technnical data
    Environmental
    Degree of protection IP 67 / NEMA 6P
    Operating temperature range -15°C (+5°F) / +90°C (+194°F)
    Mechanical
    Housing TPU, self-extinguishing
    Insert:
    M8: TPU, self-extinguishing
    M12: PA
    Contact CuSn, pre-nickeled and 0.8 microns gold-plated
    Receptacle shell Brass, nickel-plated
    O-ring FKM
    Electrical
    Contact resistance ≤5mΩ
    Voltage rating 10-30 V DC
    Current rating 2 A per port / 2 A max. total
    Accessories (included)
    ZVKM 2 dust covers for unused sockets 1 attachable label
