Distributore LioN-P DCU 8DI 8DO (8x M12) M12 L-coded Power Supply Metal 60 mm
Distributore LioN-P DCU 8DI 8DO (8x M12) M12 L-coded Power Supply Metal 60 mm

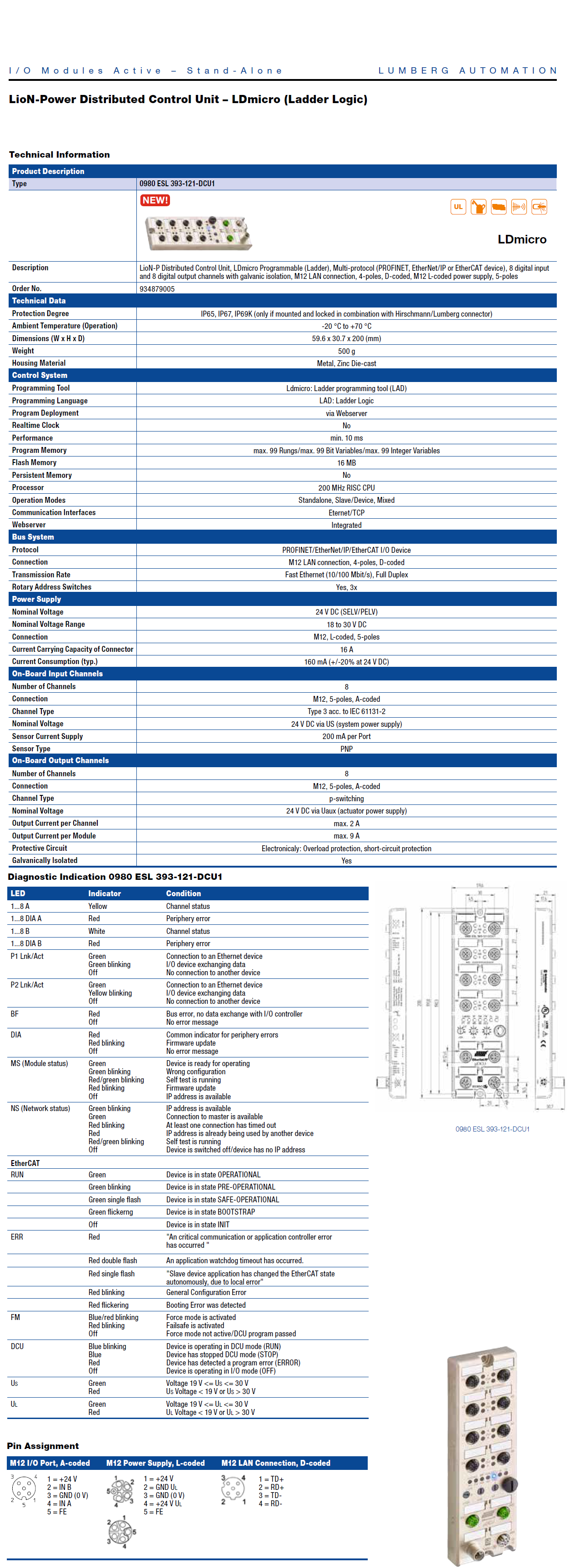

Download datasheet
0980 ESL 393-121-DCU1 LioN-P, Multiprotocol Distributed Control Unit, 8DI 8DO (8x M12), M12 L-coded Power Supply, Metal, 60 mm
CONDIVIDI / SHARE
Descrizione
Product Description
Brand: Belden
Product Family: I/O Systems: Active – Standalone
Product Sub Family: LioN-P
Item Description: 0980 ESL 393-121-DCU1
Part Number: 934879005
Device Type: Distributed Control Unit
Protocol: Multiprotocol
I/O Function: 8DI 8DO
Bus Connection: M12 LAN, 4-poles, D-coded

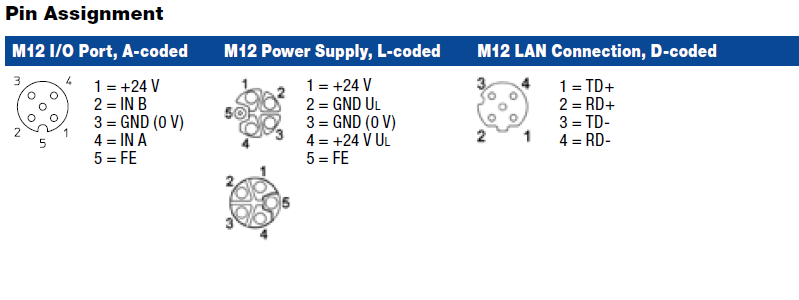

Power Connection (System Supply): M12 Power, 5-poles, L-coded
I/O Connection: M12, 5-poles, A-coded
I/O Type: Digital Input and Digital Output
