Elettrovalvola cablare femmina forma A G1/2" nero

    Richiesta informazioni

    Compila il form e invia una richiesta su questo prodotto





    Elettrovalvola cablare femmina forma A G1/2″ nero




    Download datasheet

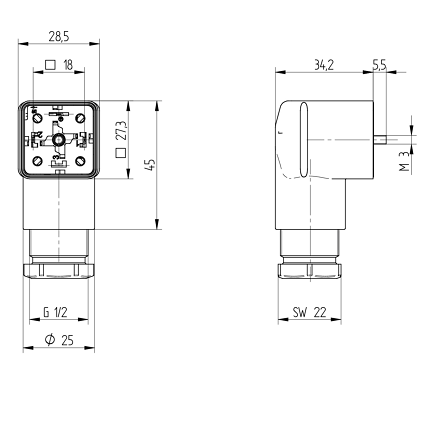

    GDM210E-A0U-1KD GDM Standard DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), black housing, screw type, G1/2″; without circuitry, 230 V AC/DC, 16 A
    Download datasheet
    GDM310E-A0U-1KD GDM Standard DIN Standard Field Attachable Connector: Form A, 4-pin (3+1PE; PE across cable outlet), black housing, screw type, G1/2″; without circuitry, 230 V AC/DC, 16 A

    CONDIVIDI / SHARE

    Descrizione

    GDM Series Valve Connectors, Type A, Field Attachable Female Connectors, no Circuit, with and without Bridge-rectifier

    Valve connector GDM series, type A, female connector, field attachable

    Standard DIN EN 175301-803-A
    Approvals VDE, SEV
    Connectible Cables Ø 4.5 to 10 mm
    Conductor Size 0.25 x 1.5 mm²
    Technical Data
    No. of Pins 2 + PE, 3 + PE 2 + PE
    Ambient Temperature -40 °C to +125 °C
    Electrical Data
    Degree of Protection IP65 (only when mated with Hirschmann/Lumberg counterparts)
    Terminal Type:
    GDMXXXX-AOU: Screw GDM31
    GDMXXXX-D3U: GDM31…: screw-type terminal, GDM3C: crimping
