Elettrovalvola cablare femmina forma A Led rosso diodo soppressore PG11 trasparente
Elettrovalvola cablare femmina forma A Led rosso diodo soppressore PG11 trasparente
Download datasheet

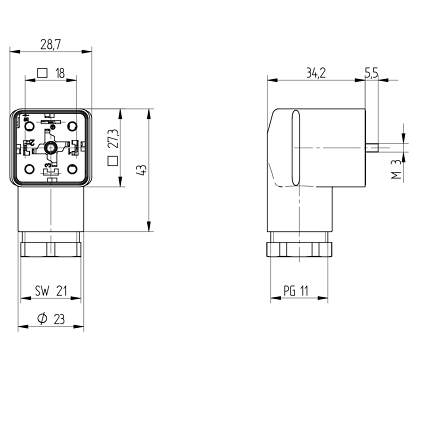

GDM21FB-D2C-3KD GDM Standard DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), transparent housing, screw type, PG11; with recovery diode and red LED, 24 V DC, 10 A
CONDIVIDI / SHARE
Descrizione
GDM Series Valve Connectors, Type A, Field Attachable Female Connectors with recovery diode and red LED
Valve connector GDM series, type A, female connector, field attachable
(Construction Type) Standard DIN EN 175301-803-A
Approvals VDE, SEV
Operating Voltage: 24 V DC
Rated Current*: 10 A
Type of Connection: Screw
Cable Gland: PG11
Conductor Cross Section: 0.25 – 1.5 mm²
Suitable Cables: Ø 4.5 – 11 mm
Ambient Temperature (Operation)*: -25 °C – +90 °C
Protection Degree / IP Rating**: IP65
