Elettrovalvola cablare femmina forma A Led rosso-verde M16 trasparente
Elettrovalvola cablare femmina forma A Led rosso-verde M16 trasparente
Download datasheet
GDM31F6-P1J-10D GDM Standard DIN Standard Field Attachable Connector: Form A, 4-pin (3+1PE; PE across cable outlet), transparent housing, screw type, M16; with red-green LEDs for pressure switch, 24 V AC/DC, 10 A
Download datasheet
GDM31F6-P1N-10D GDM Standard DIN Standard Field Attachable Connector: Form A, 4-pin (3+1PE; PE across cable outlet), transparent housing, screw type, M16; with red-green LEDs for pressure switch, 230 V AC/DC, 10 A
Download datasheet
GDM31F6-P2J-10D GDM Standard DIN Standard Field Attachable Connector: Form A, 4-pin (3+1PE; PE across cable outlet), transparent housing, screw type, M16; with red-green LEDs for pressure switch, 24 V AC/DC, 10 A
Descrizione

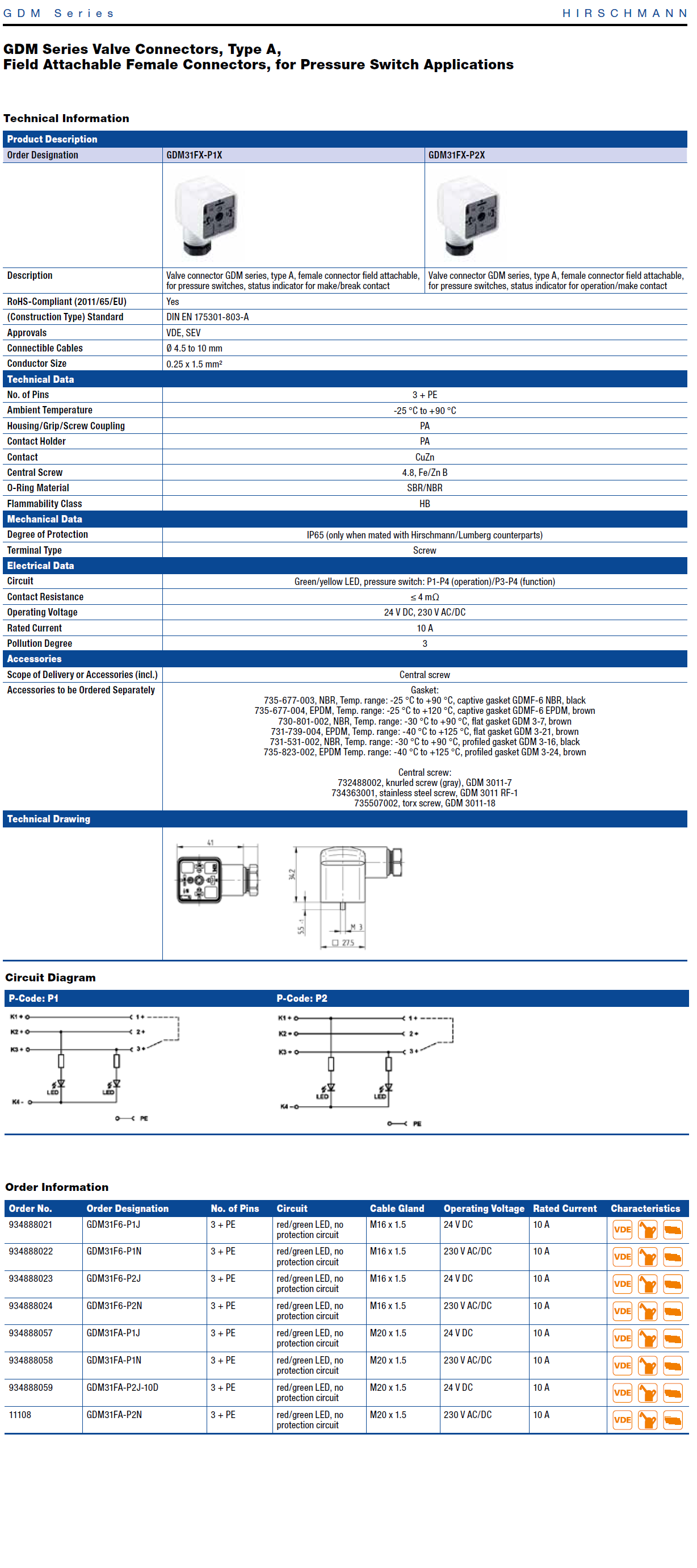

GDM Series Valve Connectors, Type A, Field Attachable Female Connectors, for Pressure Switch Applications
GDM31FX-P1X: Valve connector GDM series, type A, female connector field attachable, for pressure switches, status indicator for make/break contact
GDM31FX-P2X: Valve connector GDM series, type A, female connector field attachable, for pressure switches, status indicator for operation/make contact
(Construction Type) Standard DIN EN 175301-803-A
Approvals VDE, SEV
Connectible Cables Ø 4.5 to 10 mm
Conductor Size 0.25 x 1.5 mm²
Technical Data
No. of Pins 3 + PE
Ambient Temperature -25 °C to +90 °C
Mechanical Data
Degree of Protection IP65 (only when mated with Hirschmann/Lumberg counterparts)
Terminal Type Screw
Electrical Data
Circuit Green/yellow LED, pressure switch: P1-P4 (operation)/P3-P4 (function)
Contact Resistance ≤ 4 mΩ
Operating Voltage 24 V DC, 230 V AC/DC
Rated Current 10 A
