Elettrovalvola cablare femmina forma A NPT 1/2" con ponte raddrizzatore nero
Elettrovalvola cablare femmina forma A NPT 1/2″ con ponte raddrizzatore nero
Download datasheet

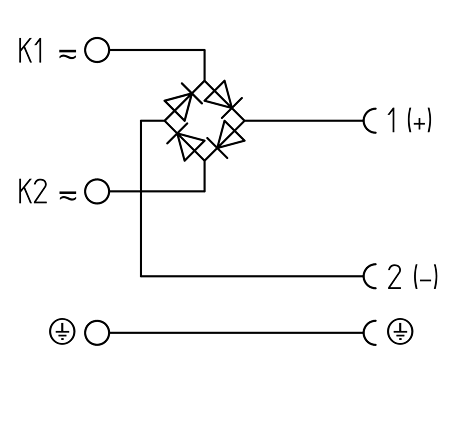

GDM210D-D3U-10D GDM Standard DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), black housing, screw type, 1/2″ NPTF; with bridge rectifier, 230 V AC/DC, 1 A
Descrizione
GDM Series Valve Connectors, Type A, Field Attachable Female Connectors, no Circuit, with and without Bridge-rectifier

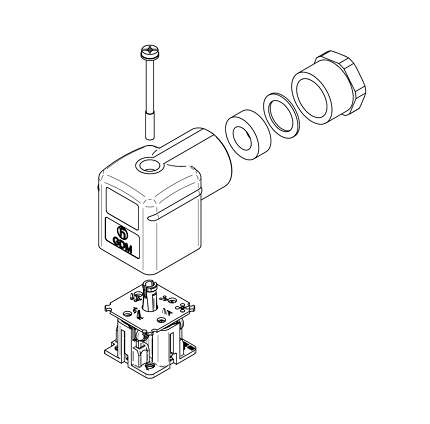

Valve connector GDM series, type A, female connector, field attachable
Standard DIN EN 175301-803-A
Approvals VDE, SEV
Connectible Cables Ø 4.5 to 10 mm
Conductor Size 0.25 x 1.5 mm²
Technical Data
No. of Pins 2 + PE, 3 + PE 2 + PE
Ambient Temperature -40 °C to +125 °C
Electrical Data
Degree of Protection IP65 (only when mated with Hirschmann/Lumberg counterparts)
Terminal Type:
GDMXXXX-AOU: Screw GDM31
GDMXXXX-D3U: GDM31…: screw-type terminal, GDM3C: crimping
