Elettrovalvola cablare femmina forma A PG11 nero flangiato
Elettrovalvola cablare femmina forma A PG11 nero flangiato
Download datasheet
GDMW 3011 DF black GDMW High-Voltage Line DIN Standard Field Attachable Connector: Form A, 4-pin (3+1PE; PE across cable outlet), black housing, screw type, PG11; without circuitry, 400 V AC/DC, 16 A
Download datasheet
GDMW 3011 DF Y black GDMW High-Voltage Line DIN Standard Field Attachable Connector: Form A, 4-pin (3+1PE; PE across cable outlet), black housing, screw type, PG11; without circuitry, 400 V AC/DC, 16 A
Descrizione

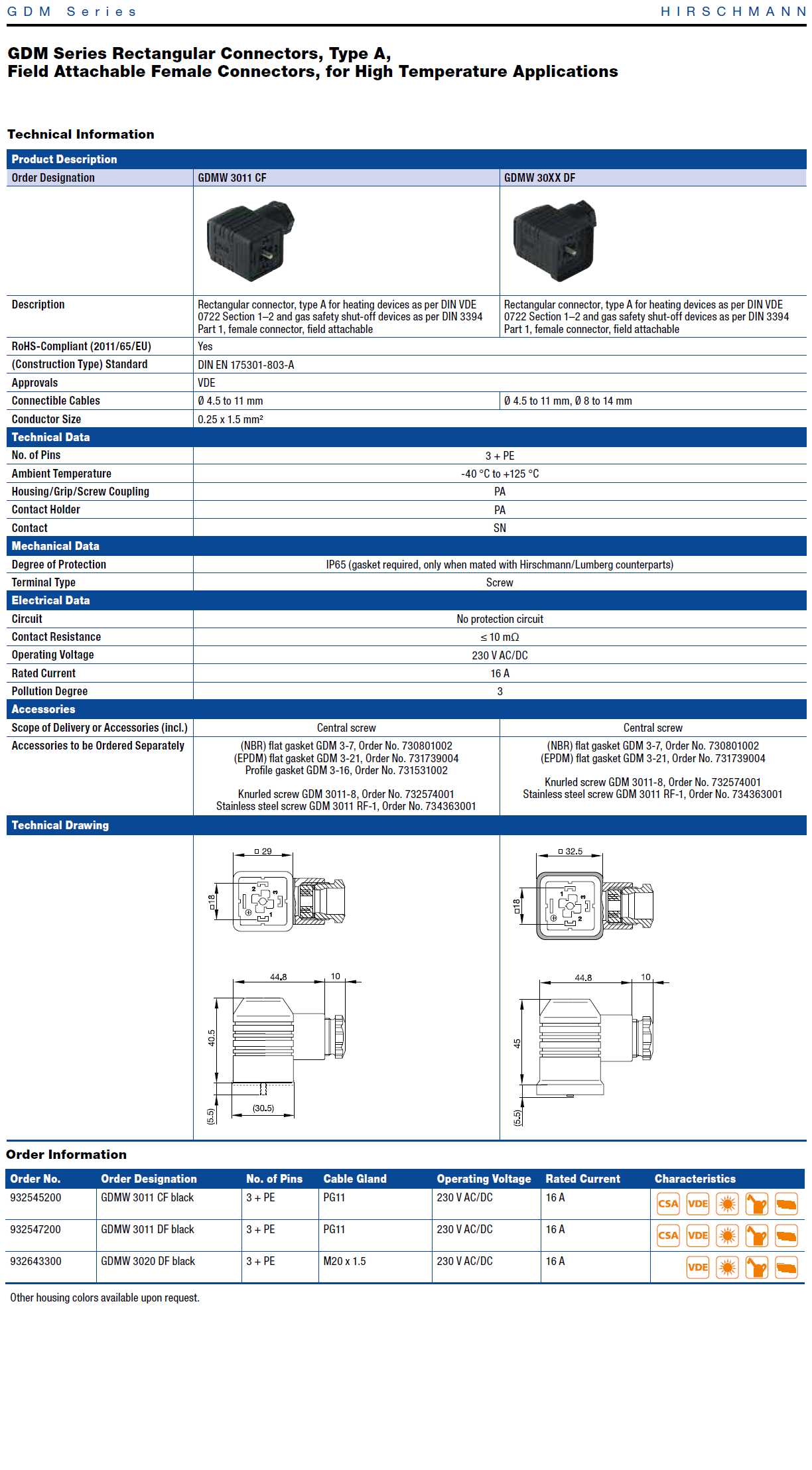

GDM Series Rectangular Connectors, Type A, Field Attachable Female Connectors, for High Temperature Applications
GDMW 3011 CF: Rectangular connector, type A for heating devices as per DIN VDE 0722 Section 1–2 and gas safety shut-off devices as per DIN 3394 Part 1, female connector, field attachable
GDMW 30XX DF: Rectangular connector, type A for heating devices as per DIN VDE 0722 Section 1–2 and gas safety shut-off devices as per DIN 3394
Part 1, female connector, field attachable
Standard DIN EN 175301-803-A
Approvals VDE,
Connectible Cables
GDMW 3011 CF: Ø 4.5 to 11 mm
GDMW 30XX DF: Ø 4.5 to 11 mm, Ø 8 to 14 mm
Conductor Size 0.25 x 1.5 mm²
Technical Data
No. of Pins
No. of Pins 3 + PE
Ambient Temperature -40 °C to +125 °C
Electrical Data
Degree of Protection IP65 (only when mated with Hirschmann/Lumberg counterparts)
Terminal Type Screw
Circuit No protection circuit
Contact Resistance ≤ 10 mΩ
Operating Voltage 230 V AC/DC
Rated Current 16 A
