Elettrovalvola cablare femmina forma A soppressore diodo M20 nero
Elettrovalvola cablare femmina forma A soppressore diodo M20 nero

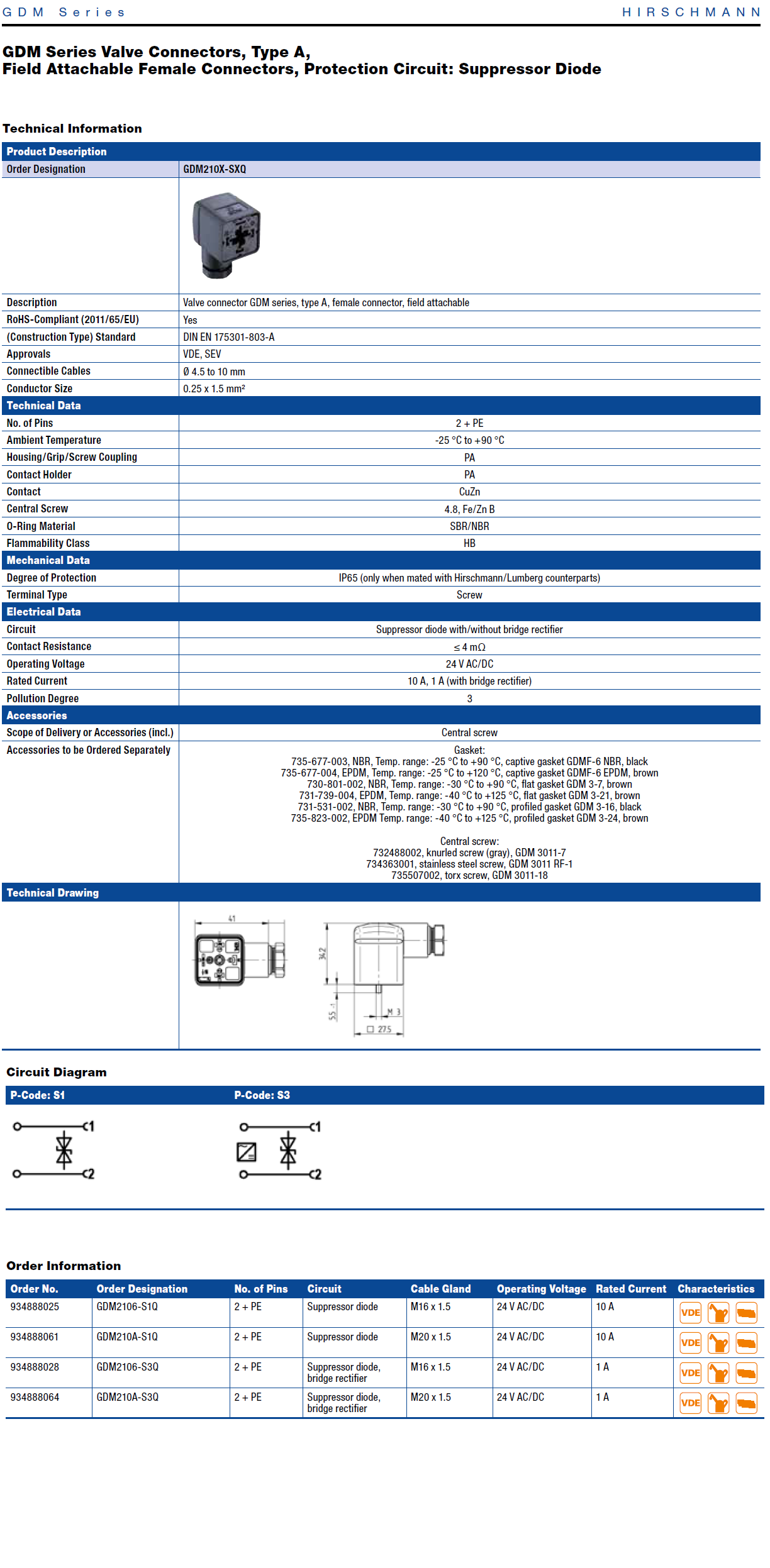

Download datasheet
GDM210A-S1Q-10D GDM Standard DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), black housing, screw type, M20; with supressor diode, 24 V AC/DC, 10 A
Download datasheet
GDM210A-S3Q-10D GDM Standard DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), black housing, screw type, M20; with bridge rectifier and supressor diode, 24 V AC/DC, 1 A
Descrizione
GDM Series Valve Connectors, Type A, Field Attachable Female Connectors, Protection Circuit: Suppressor Diode
Valve connector GDM series, type A, female connector, field attachable
(Construction Type) Standard DIN EN 175301-803-A
Approvals VDE, SEV
Connectible Cables Ø 4.5 to 10 mm
Conductor Size 0.25 x 1.5 mm²
Technical Data
No. of Pins 2 + PE
Ambient Temperature -25 °C to +90 °C
Electrical Data
Degree of Protection IP65 (only when mated with Hirschmann/Lumberg counterparts)
Terminal Type Screw
Electrical Data
Circuit Suppressor diode with/without bridge rectifier
Contact Resistance ≤ 4 mΩ
Operating Voltage 24 V AC/DC
Rated Current 10 A, 1 A (with bridge rectifier)
