Elettrovalvola cablare femmina forma B UL Led giallo PG9 trasparente pressacavo grigio
Elettrovalvola cablare femmina forma B UL Led giallo PG9 trasparente pressacavo grigio
Download datasheet
GML 209 NJ LED 120 YE grey GML Industrial Standard Field Attachable Connector: Form B, 3-pin (2+1PE), UL 1977, translucent housing with grey cable gland, screw type, PG9; with yellow LED, 110 V AC/DC, 10 A
Download datasheet
GML 209 NJ LED 230 YE grey GML Industrial Standard Field Attachable Connector: Form B, 3-pin (2+1PE), UL 1977, translucent housing with grey cable gland, screw type, PG9; with yellow LED, 230 V AC/DC, 10 A
Download datasheet
GML 209 NJ LED 24 YE grey GML Industrial Standard Field Attachable Connector: Form B, 3-pin (2+1PE), UL 1977, translucent housing with grey cable gland, screw type, PG9; with yellow LED, 24 V AC/DC, 10 A
Download datasheet
GMNL 209 NJ LED 230 YE grey GMNL DIN Standard Field Attachable Connector: Form B, 3-pin (2+1PE), UL 1977, translucent housing with grey cable gland, screw type, PG9; with yellow LED, 230 V AC/DC, 10 A
Descrizione

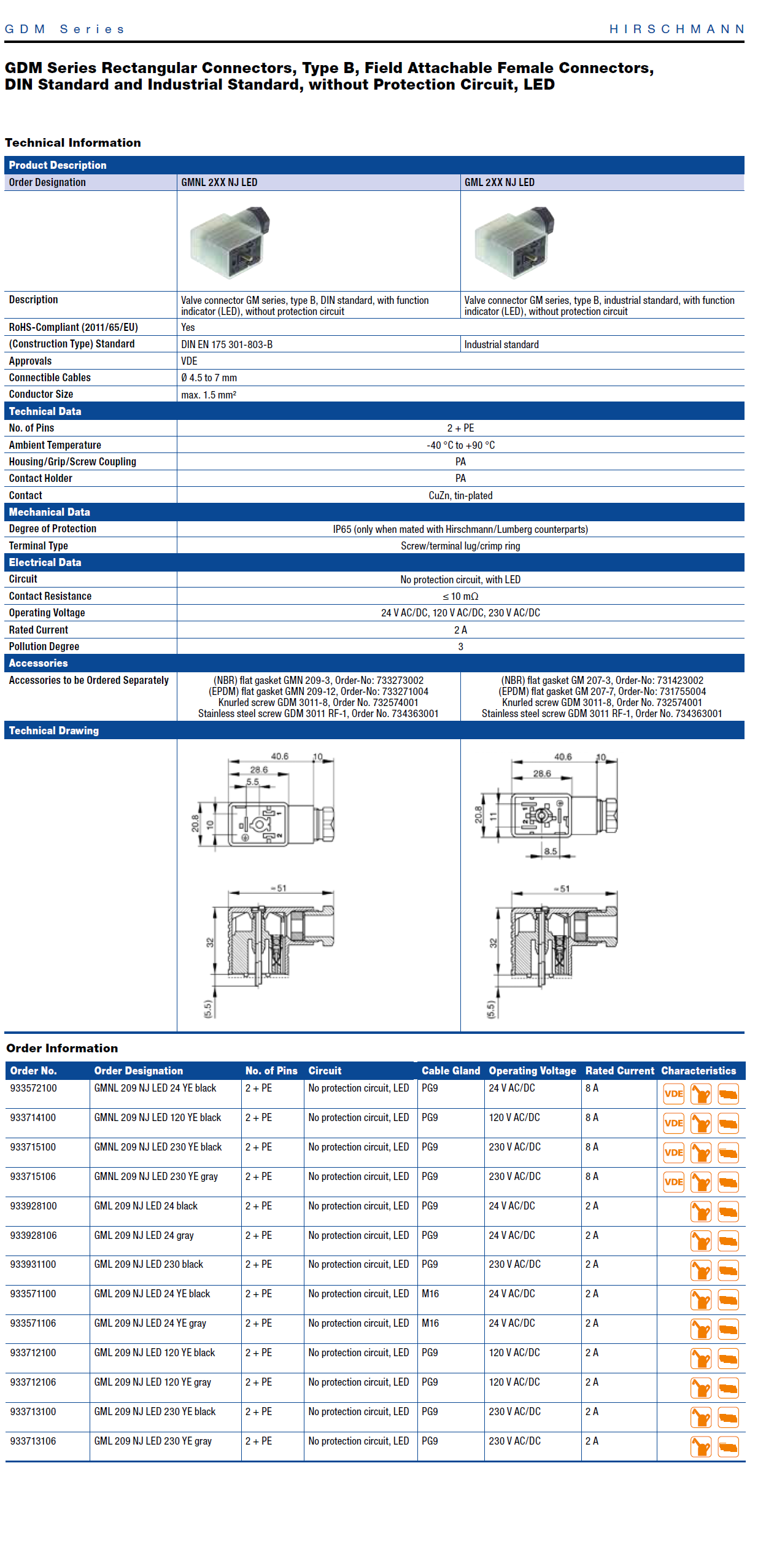

GDM Series Rectangular Connectors, Type B, Field Attachable Female Connectors, DIN Standard and Industrial Standard, without Protection Circuit
GMNL 2XX NJ LED: Valve connector GM series, type B, DIN standard, with function indicator (LED), without protection circuit, DIN EN 175 301-803-B
GML 2XX NJ LED: Valve connector GM series, type B, industrial standard, with function indicator (LED), without protection circuit, Industrial standard
Approvals VDE
Connectible Cables Ø 4.5 to 7 mm
Conductor Size max. 1.5 mm²
Technical Data
No. of Pins 2 + PE
Ambient Temperature -40 °C to +125 °C
Mechanical Data
Degree of Protection IP65 (only when mated with Hirschmann/Lumberg counterparts)
Terminal Type Screw/terminal lug/crimp ring
Electrical Data
Circuit No protection circuit, with LED
Contact Resistance ≤ 10 mΩ
Operating Voltage 24 V AC/DC, 120 V AC/DC, 230 V AC/DC
Rated Current 2 A
