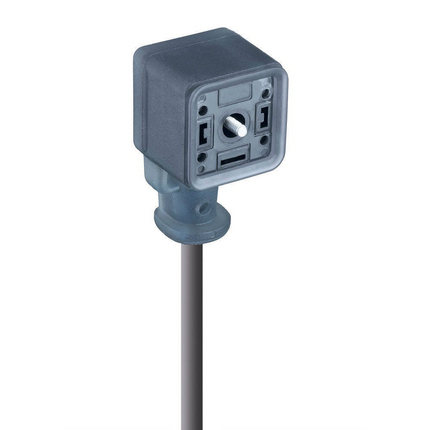

Elettrovalvola femmina forma A PUR grigio
Elettrovalvola femmina forma A PUR grigio
Download datasheet
GAN20LU-A0U-606 GAN DIN Standard Single-Ended Cordset: Form A, 2-pin, grey translucent body, without circuitry, 230 V AC/DC, 10 A; PUR grey cable, 0.75 mm²
Download datasheet
GAN21LU-A0U-603 GAN DIN Standard Single-Ended Cordset: Form A, 3-pin (2+1PE; PE across cable outlet), grey translucent body, without circuitry, 230 V AC/DC, 10 A; PUR grey cable, 0.75 mm²
Download datasheet
GAN22LU-A0U-603 GAN DIN Standard Single-Ended Cordset: Form A, 3-pin (2+2PE), grey translucent body, without circuitry, 230 V AC/DC, 10 A; PUR grey cable, 0.75 mm²
Download datasheet
GAN31LU-A0U-604 GAN DIN Standard Single-Ended Cordset: Form A, 4-pin (3+1PE; PE across cable outlet), grey translucent body, without circuitry, 230 V AC/DC, 10 A; PUR grey cable, 0.75 mm²
Descrizione
GDM Series Valve Connectors, Type A, Overmolded Female Connectors
GANXX0U-A0U: Valve connector GDM series, type A, female connector overmolded, with UL approval, available with different pin options
GANXXLU-A0U: Valve connector GDM series, type A, female connector overmolded, available with different pin options
Standard DIN EN 175301-803-A
Technical Data
No. of Pins 2, 2 + PE, 2 + 2PE, 3 + PE
Ambient Temperature -25 °C to +85 °C (UL), -40 °C/+105 °C (with additional gasket)
Degree of Protection IP67, IP68/IP69K with PUR cable (only when mated with Hirschmann/Lumberg counterparts)
Electrical Data
Circuit No protection circuit
Operating Voltage 230 V AC/DC, without PE: 50 V AC/60 V DC
Rated Current 10 A (cable: 0.75 mm²), 6 A (cable: 0.5 mm²)
