Elettrovalvola femmina forma C PUR nero
Elettrovalvola femmina forma C PUR nero
Download datasheet
VCD 1D-3-3-226 VCD DIN Standard Single-Ended Cordset: Form C, 4-pin (2+2PE), black body, without circuitry, 230 V AC/DC, 4 A; PUR black cable, 0.50 mm²
Descrizione

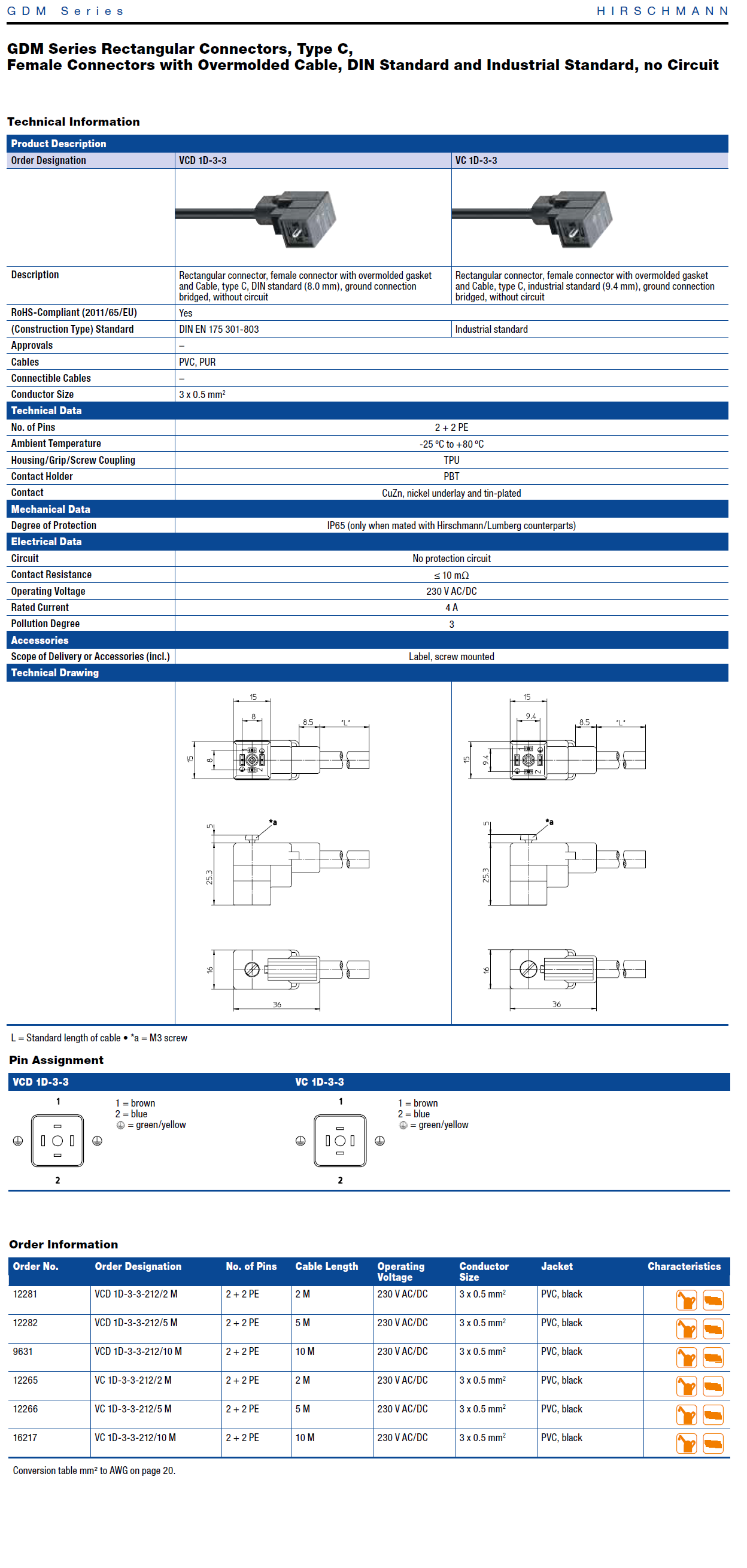

GDM Series Rectangular Connectors, Type C, Female Connectors with Overmolded Cable, DIN Standard and Industrial Standard, no Circuit
VCD 1D-3-3: Rectangular connector, female connector with overmolded gasket and Cable, type C, DIN standard (8.0 mm), ground connection bridged, without circuit DIN EN 175 301-803
VC 1D-3-3: Rectangular connector, female connector with overmolded gasket and Cable, type C, industrial standard (9.4 mm), ground connection bridged, without circuit Industrial standard
Cables PVC, PUR
Conductor Size 3 x 0.5 mm2
Technical Data
No. of Pins 2 + 2 PE
Ambient Temperature -25 ºC to +80 ºC
Mechanical Data
Degree of Protection IP65 (only when mated with Hirschmann/Lumberg counterparts)
Electrical Data
Circuit No protection circuit
Contact Resistance ≤ 10 mΩ
Operating Voltage 230 V AC/DC
Rated Current 4 A
