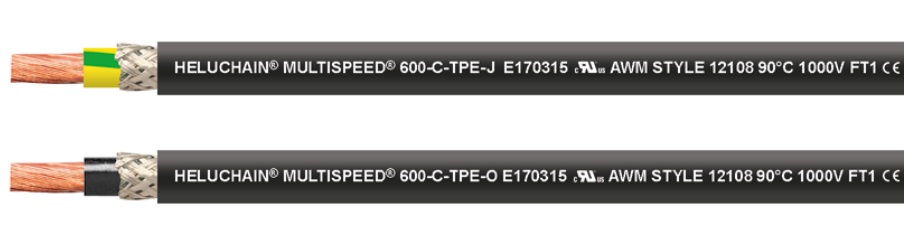

HELUCHAIN® MULTISPEED® 600-C-TPE-J/O
Descrizione
Temperature range
flexible -40°C to +90°C
fixed -40°C to +90°C
Nominal voltage
VDE AC U0/U 600/1000V
UL (AWM) AC 1000V
Informazioni aggiuntive
| Approval | CE, CSA, UL |
|---|---|
| Properties | Chemicals resistant, Oil resistant, Ozone resistant, UV resistant |
Datasheet
Compliance
File N. E170315
Style 12108
This UL/CSA approved cable is used when extreme demands are placed on the cable. Designed for export-oriented machine manufacturers, specifically in the USA and Canada. Gearing to the needs of the
industry, materials and stranding techniques permit continuous use as highly flexible drag chain cable with long travelling distance capabilities at high and low speed. For installation in dry and damp rooms, as well as outdoors. With free movement, without tensile stress and without forced motion control capabilities, this highly flexible TPE drag chain cable is suitable for frequent lifting and bending stresses in
machine and tool construction.
EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.
