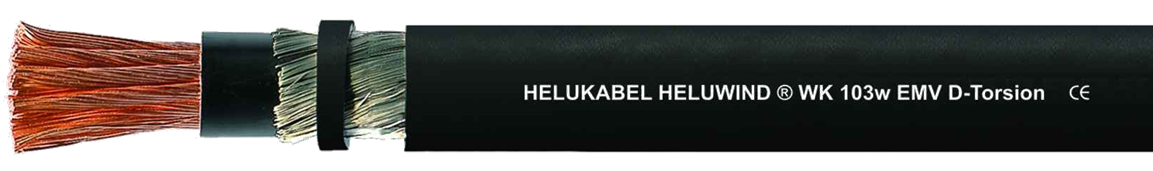

HELUWIND® WK 103w EMV D-Torsion
Descrizione
Temperature range
flexing -35°C to +90°C
fixed installation -40°C to +90°C
installation -20°C to +90°C
Nominal voltage
VDE U0/U 0,6/1 kV
UL 1000 V
Informazioni aggiuntive
| Approval | CSA, UL |
|---|---|
| Properties | Oil resistant, Torsion, UV resistant |
Datasheet
Datasheet 2
Style 10678 Single core
Style 21179 Multicore
The WK 103w EMV D-Torsion has been designed for flexible use, and specifically for torsional load in the cable loop of a wind power plant. The voltage level has been configured as 0.6/1 kV for all dimensions, which means that the cables can also be laid in parallel in compliance with UL standards. It is no longer necessary to separate the cable routes. The WK series has been successfully tested for more than 18,000 torsion cycles and thus offers optimum operational reliability far beyond the service life of the wind power plant.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper wrapping on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
