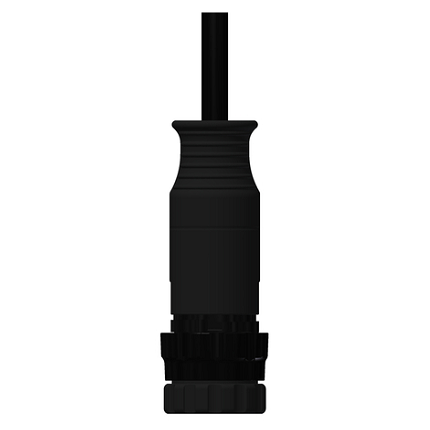

Isobus femmina serie EJ cavo PUR nero

    Richiesta informazioni

    Compila il form e invia una richiesta su questo prodotto





    Isobus femmina serie EJ cavo PUR nero






    Download datasheet
    55-10061 EJ-9-S/600P/2m Series Isobus Type EJ, n. poles 9, female, max. 12 V DC current rating 600P cable 2×6-2×2.5-4×0.5mmq PUR black, L=2m
    55-10062 EJ-9-S/600P/5m Series Isobus Type EJ, n. poles 9, female, max. 12 V DC current rating 600P cable 2×6-2×2.5-4×0.5mmq PUR black, L=5m
    55-10063 EJ-9-S/600P/10m Series Isobus Type EJ, n. poles 9, female, max. 12 V DC current rating 600P cable 2×6-2×2.5-4×0.5mmq PUR black, L=10m
    Download datasheet
    55-10067 EJ-9-S/1000P/2m Series Isobus Type EJ, n. poles 9, female, max. 12 V DC current rating 1000P cable 2×10-2×2.5-4×0.5mmq PUR black, L=2m
    55-10068 EJ-9-S/1000P/5m Series Isobus Type EJ, n. poles 9, female, max. 12 V DC current rating 1000P cable 2×10-2×2.5-4×0.5mmq PUR black, L=5m
    55-10069 EJ-9-S/1000P/10m Series Isobus Type EJ, n. poles 9, female, max. 12 V DC current rating 1000P cable 2×10-2×2.5-4×0.5mmq PUR black, L=10m
    Download datasheet
    55-10073 EJ-9-S/1600P/2m Series Isobus Type EJ, n. poles 9, female, max. 12 V DC current rating 1600P cable 2×16-2×2.5-4×0.5mmq PUR black, L=2m
    55-10074 EJ-9-S/1600P/5m Series Isobus Type EJ, n. poles 9, female, max. 12 V DC current rating 1600P cable 2×16-2×2.5-4×0.5mmq PUR black, L=5m
    55-10075 EJ-9-S/1600P/10m Series Isobus Type EJ, n. poles 9, female, max. 12 V DC current rating 1600P cable 2×16-2×2.5-4×0.5mmq PUR black, L=10m

    CONDIVIDI / SHARE

    Descrizione

    ISOBUS connectors
    Product specification
    Basic material
    Contact Copper alloy
    Contact plating EJ and HD: Ni / JPT: Sn
    Contact carrier EJ: PA6.6 / HD: Aluminium/Thermoplast / JPT: PBT ASA GF30
    Overmould TPU, UL94 V-0, black
    Landing plate (EJ) PA6.6 UL94 V-0, black
    Protective cover EJ: PA6.6 UL94 V-0, black / HDC: Aluminium
    Corrugated tube PA6 UL94 HB, black
    Sealing Silicone
    Technical Data
    Rated voltage EJ and JPT: max. 12 V DC / HD: max. 32 V DC
    Current rating max.:
    600P altern. 1000P altern. 1600P:
    25 A at 40 °C [6 mm²] altern.
    35 A at 40 °C [10 mm²] altern.
    60 A at 40 °C [16 mm²]
    15 A at 40 °C [2,5 mm²]
    5 A at 40 °C [0,5 mm²]
    Degree of protection IP67 / IP69K in mated condition
    Temperature range connectors EJ / HD: -40 °C to +85 °C / JPT: -40 °C to +80 °C
    Temerature range cable Fixed installation: -40 °C to +85 °C
    Flexible installation: -20°C to +85 °C
    Terminal cross section 600P altern. 1000 altern. 1600P:
    2 x 6 mm² altern. 2 x 10 mm² altern. 2 x 16 mm²
    2 x 2,5 mm² +
    4 x 0,5 mm²
    Housing EJ / HD34 / JPT
