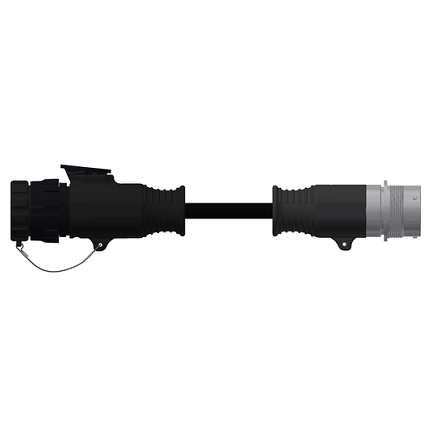

Isobus femmina serie EJ con piastra - maschio serie HD cavo PUR nero
Isobus femmina serie EJ con piastra – maschio serie HD cavo PUR nero
Download datasheet
55-10130 EJ-9-S-L1-HD34-24-91-P/600P/6m Series Isobus Type EJ-HD, n. poles 9, female-male, max. 12 V DC current rating 600P cable 2×6-2×2.5-4×0.5mmq Landing plate PUR black, L=6m
55-10131 EJ-9-S-L1-HD34-24-91-P/600P/9m Series Isobus Type EJ-HD, n. poles 9, female-male, max. 12 V DC current rating 600P cable 2×6-2×2.5-4×0.5mmq Landing plate PUR black, L=9m
55-10132 EJ-9-S-L1-HD34-24-91-P/600P/12m Series Isobus Type EJ-HD, n. poles 9, female-male, max. 12 V DC current rating 600P cable 2×6-2×2.5-4×0.5mmq Landing plate PUR black, L=12m
Download datasheet
55-10133 EJ-9-S-L1-HD34-24-91-P/1000P/6m Series Isobus Type EJ-HD, n. poles 9, female-male, max. 12 V DC current rating 1000P cable 2×10-2×2.5-4×0.5mmq Landing plate PUR black, L=6m
55-10134 EJ-9-S-L1-HD34-24-91-P/1000P/9m Series Isobus Type EJ-HD, n. poles 9, female-male, max. 12 V DC current rating 1000P cable 2×10-2×2.5-4×0.5mmq Landing plate PUR black, L=9m
55-10135 EJ-9-S-L1-HD34-24-91-P/1000P/12m Series Isobus Type EJ-HD, n. poles 9, female-male, max. 12 V DC current rating 1000P cable 2×10-2×2.5-4×0.5mmq Landing plate PUR black, L=12m
Descrizione
ISOBUS connectors
Product specification
Basic material
Contact Copper alloy
Contact plating EJ and HD: Ni / JPT: Sn
Contact carrier EJ: PA6.6 / HD: Aluminium/Thermoplast / JPT: PBT ASA GF30
Overmould TPU, UL94 V-0, black
Landing plate (EJ) PA6.6 UL94 V-0, black
Protective cover EJ: PA6.6 UL94 V-0, black / HDC: Aluminium
Corrugated tube PA6 UL94 HB, black
Sealing Silicone
Technical Data
Rated voltage EJ and JPT: max. 12 V DC / HD: max. 32 V DC
Current rating max.:
600P altern. 1000P altern. 1600P:
25 A at 40 °C [6 mm²] altern.
35 A at 40 °C [10 mm²] altern.
60 A at 40 °C [16 mm²]
15 A at 40 °C [2,5 mm²]
5 A at 40 °C [0,5 mm²]
Degree of protection IP67 / IP69K in mated condition
Temperature range connectors EJ / HD: -40 °C to +85 °C / JPT: -40 °C to +80 °C
Temerature range cable Fixed installation: -40 °C to +85 °C
Flexible installation: -20°C to +85 °C
Terminal cross section 600P altern. 1000 altern. 1600P:
2 x 6 mm² altern. 2 x 10 mm² altern. 2 x 16 mm²
2 x 2,5 mm² +
4 x 0,5 mm²
Housing EJ / HD34 / JPT
