M12 femmina diritto B-coded PUR nero

    Richiesta informazioni

    Compila il form e invia una richiesta su questo prodotto





    M12 femmina diritto B-coded PUR nero


    Download datasheet

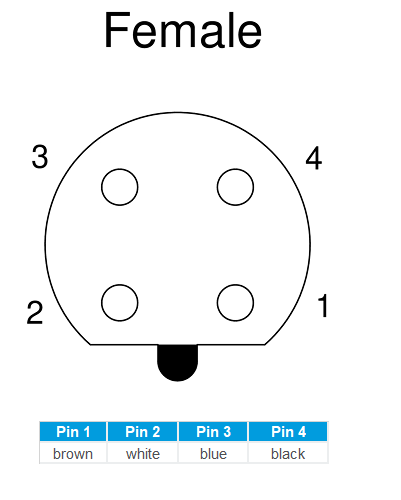

    RKT 4B-225 – M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 4-pin, B-coded, translucent body, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, 0.34 mm²
    Download datasheet

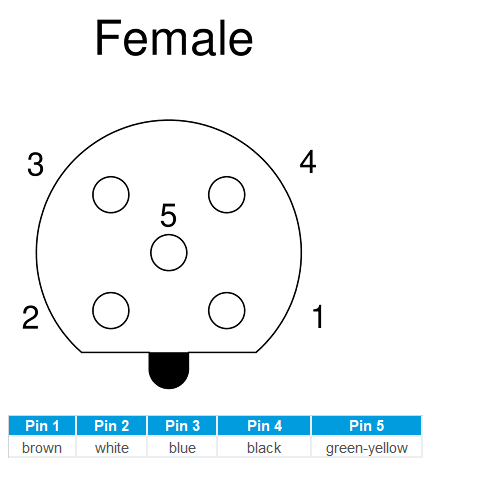

    RKT 5B-228 – M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 5-pin, B-coded, translucent body, 50 V AC / 60 V DC, 4 A; PUR black cable, 5-wires, 0.50 mm²





    CONDIVIDI / SHARE

    Descrizione

    Rated Voltage: 60 V
    Rated Voltage (UL): 30 V AC/DC
    Rated Impulse Voltage: 1.5 kV
    Operating Voltage: 50 V AC / 60 V DC
    Rated Current*: 4 A
    Rated Current (UL)*: 4 A
    Contact Resistance: ≤ 10 mOhm
    Insulation Resistance: ˃ 10^9 Ohm
    Mating Cycles: ≤ 100
    Ambient Temperature (Operation)*: – 40 °C – + 90 °C
    Operating Temperature (UL): max. + 50 °C
    Protection Degree / IP Rating**: IP65, IP67, IP68 (1 m / 24 h), IP69K
    Design Standard: IEC 61076-2-101
