M12 femmina diritto B-coded PVC arancione
M12 femmina diritto B-coded PVC arancione
Download datasheet

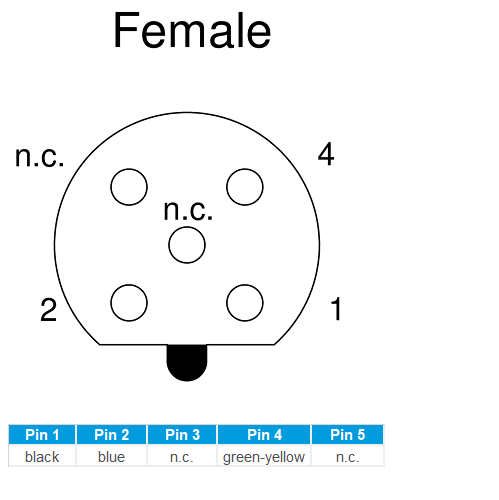

RKT 4-3B-19 – M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 4-pin, B-coded, orange body, 50 V AC / 60 V DC, 4 A; PVC orange cable, 3-wires, 0.50 mm²
Download datasheet
RKT 5B-48 – M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 5-pin, B-coded, orange body, 50 V AC / 60 V DC, 4 A; PVC orange cable, 5-wires, 4×0.34 mm²+1×0.50 mm²(GNYE)
CONDIVIDI / SHARE
Descrizione
Rated Voltage: 60 V
Rated Impulse Voltage: 1.5 kV
Operating Voltage: 50 V AC / 60 V DC
Rated Current*: 4 A
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ≤ 100
Ambient Temperature (Operation)*: – 40 °C – + 90 °C
Protection Degree / IP Rating**: IP65, IP67
