M12 insulation body male L-coded THR
M12 insulation body male L-coded THR
M12x1 Sockets THR
Download datasheet
43-03910 SAL-12L-ISO4FE/THR M12 L-coded male axial insulation body 4+FE pos. THR, unshielded, 63V, 16A
Download datasheet

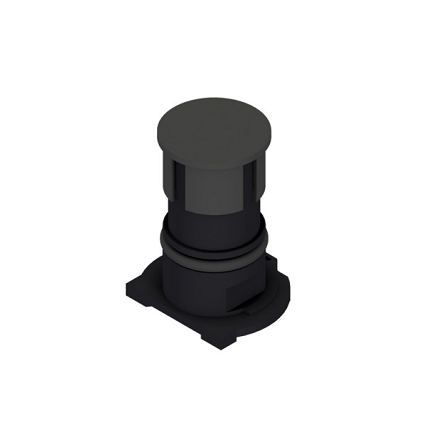

43-03909 SAL-12L-ISO4/THR M12 L-coded male axial insulation body 4 pos. THR, unshielded, 63V, 16A
Descrizione
General Data
Product type Power connectors
Style Installation components
Size A-side M12x1
Design Insulation body with O-ring
Size/Number of positions 4-pos / 4-pos+FE
Coding L-coded
Type A-side [ Female, Male] Male connector axial
IP range A-side IP67
Mounting options [e.g. front/back panel mounting etc.] with O-Ring
Termination signal [e.g. clamp, crimp, solder, SMT] THR
Type Insulation body
Technical Data
Working voltage signal 63 V
Current rating signal 16 A
min. working temperature -40° C
max. working temperature +105° C
Shielding Unshielded
