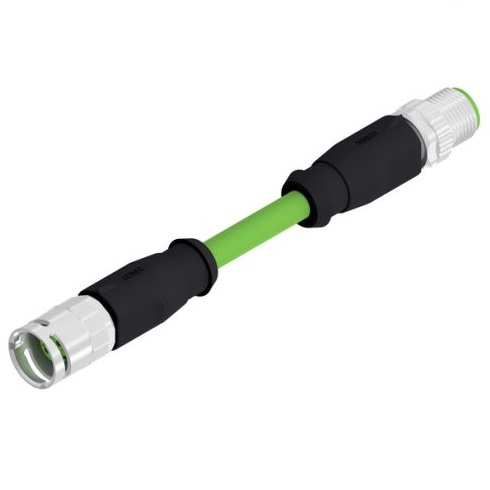

M12-M12 femmina-maschio baionetta/vite diritto D-coded TPU, UL, green
M12-M12 femmina-maschio baionetta/vite diritto D-coded TPU, UL, green
Double ended M12-M12 Bayonet/screwable Ethernet 100 MHz
Download datasheet
43-23938 SAL – B12D – RK4.2 – RS4.2 – 0,6 / G6 / A1002 M12-M12 D-coded female-male axial-axial – bayonet/screwable cordset 4 pos. TPU, UL, green, 2x2xAWG22, 0,6 m
43-23939 SAL – B12D – RK4.2 – RS4.2 – 1,5 / G6 / A1002 M12-M12 D-coded female-male axial-axial – bayonet/screwable cordset 4 pos. TPU, UL, green, 2x2xAWG22, 1,5 m
43-23940 SAL – B12D – RK4.2 – RS4.2 – 3 / G6 / A1002 M12-M12 D-coded female-male axial-axial – bayonet/screwable cordset 4 pos. TPU, UL, green, 2x2xAWG22, 3 m
Download datasheet
43-23941 SAL – B12D – RK4.2 – 12D – RS4.2 – 0,6 / G6 / A1002 M12-M12 D-coded female-male axial-axial – bayonet cordset 4 pos. TPU, UL, green, 2x2xAWG22, 0,6 m
43-23942 SAL – B12D – RK4.2 – 12D – RS4.2 – 1,5 / G6 / A1002 M12-M12 D-coded female-male axial-axial – bayonet cordset 4 pos. TPU, UL, green, 2x2xAWG22, 1,5 m
43-23943 SAL – B12D – RK4.2 – 12D – RS4.2 – 3 / G6 / A1002 M12-M12 D-coded female-male axial-axial – bayonet cordset 4 pos. TPU, UL, green, 2x2xAWG22, 3 m
Descrizione
Technical Data
Working voltage signal 160 V
Current rating signal 4 A at +40°C
min. working temperature -30° C
max. working temperature +70° C
Shielding Shielded
Cable quality [e.g. PP, PVC, TPE etc.] TPU UL
Wire cross section AWG22
