M12 maschio-maschio diritto Y-coded PUR nero
M12 maschio-maschio diritto Y-coded PUR nero
Download datasheet

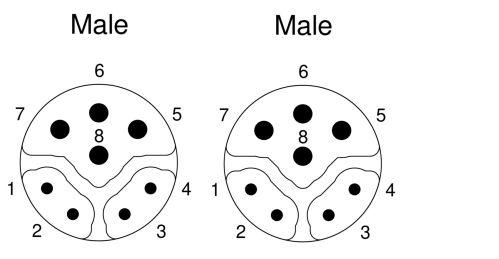

RSTS 8Y-RSTS 8Y-922 – Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight Y-coded black M12 Hybrid to male straight Y-coded black M12 Hybrid, shielded, 50 V AC/ DC, Power: 6 A; Data: 0.5 A; PUR black cable, 8-wires, Data: 4×0.15 mm² + Power: 4×0.75 mm²
CONDIVIDI / SHARE
Descrizione
Shielding: Shielded
Rated Voltage: 50 V
Rated Voltage (UL): 30 V AC / 50 V DC
Rated Impulse Voltage: 0.8 kV
Operating Voltage: 50 V AC/ DC
Rated Current*: Power: 6 A; Data: 0.5 A
Rated Current (UL)*: 0.5 A
Data Transmission: Fast Ethernet Cat5e
Data Transmission Rate: 100 Mbit/s
Ambient Temperature (Operation)*: – 40 °C – + 90 °C
Operating Temperature (UL): max. + 55 °C
Protection Degree / IP Rating**: IP65, IP67, IP69K
