M12 pannello retro pcb femmina D-coded PG9
M12 pannello retro pcb femmina D-coded PG9

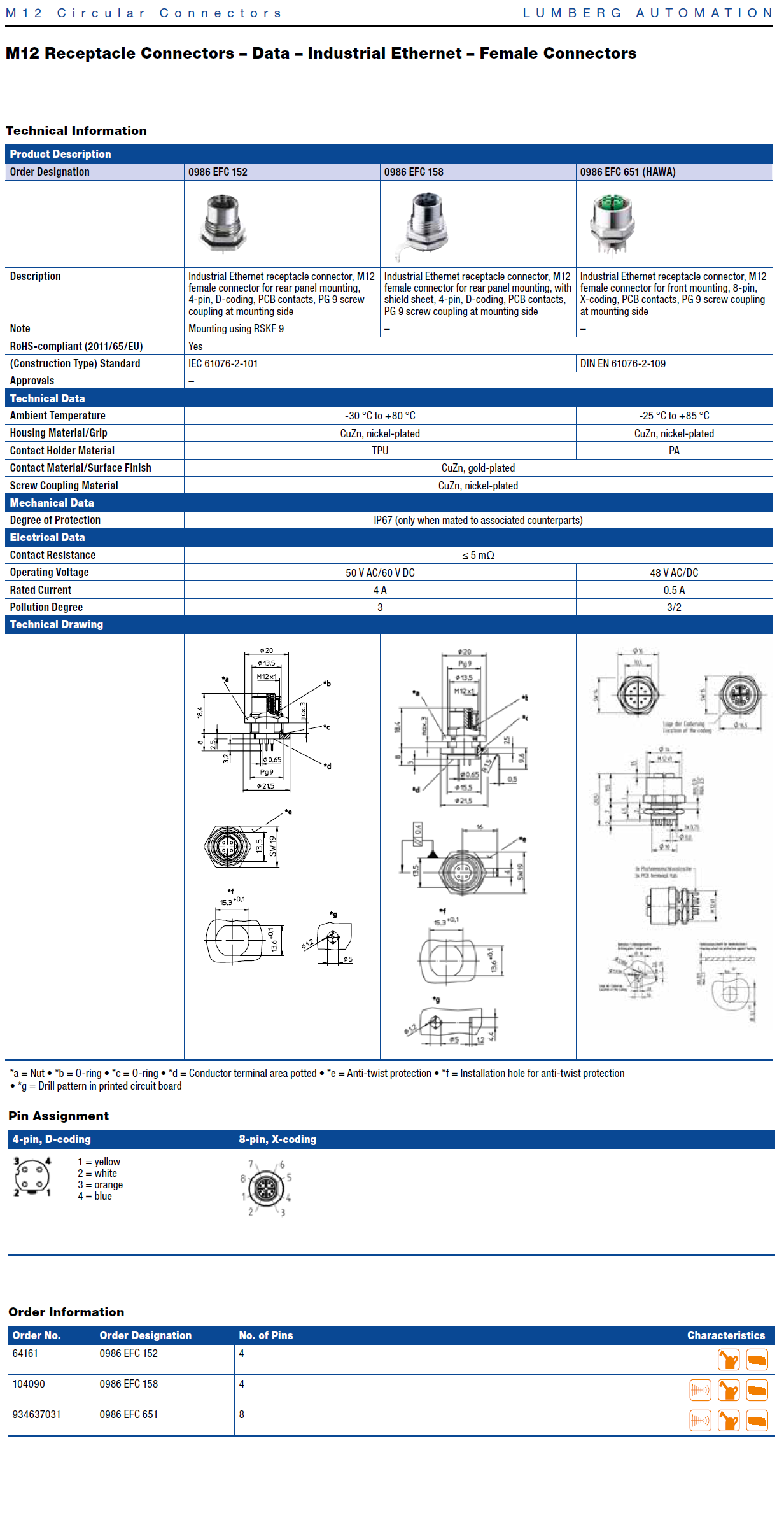

Download datasheet
0986 EFC 152 Fast Ethernet Cat5e Data Receptacle Connector: Female, rear mount, M12 – mating side, print contacts – connecting side, 4-pin, D-coded, unshielded, metallic grey housing, 50 V AC / 60 V DC, 4 A
CONDIVIDI / SHARE
Descrizione
Rated Voltage: 60 V
Rated Impulse Voltage: 1.5 kV
Operating Voltage: 50 V AC / 60 V DC
Rated Current*: 4 A
Thread Size: M16x1.5
Ambient Temperature (Operation)*: – 25 °C – + 85 °C
Protection Degree / IP Rating**: IP65, IP67
