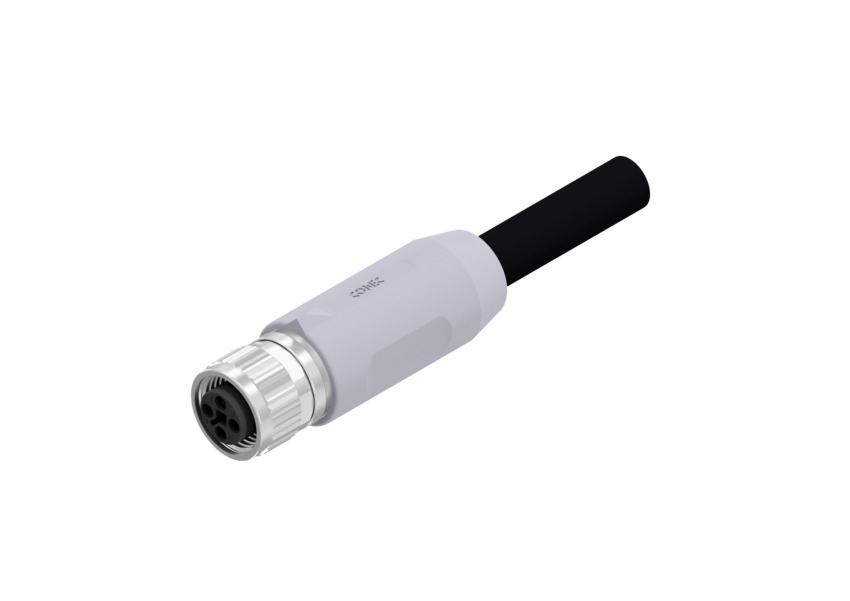

M12 Power femmina diritto T-coded 12A PVC nero

    Richiesta informazioni

    Compila il form e invia una richiesta su questo prodotto





    M12 Power femmina diritto T-coded 12A PVC nero

    PVC nero

    Download datasheet


    43-17132 SAL-12T-RK4-2/A2 M12 T-coded female axial 4 pos. PVC Black, 4×1,5mm², 2 m
    43-17133 SAL-12T-RK4-3/A2 M12 T-coded female axial 4 pos. PVC Black, 4×1,5mm², 3 m
    43-17134 SAL-12T-RK4-5/A2 M12 T-coded female axial 4 pos. PVC Black, 4×1,5mm², 5 m
    43-17135 SAL-12T-RK4-10/A2 M12 T-coded female axial 4 pos. PVC Black, 4×1,5mm², 10 m

    CONDIVIDI / SHARE

    Descrizione

    Technical Data
    Working voltage note VOLTAGE MAY BE PRESENT ONLY IN MATED CONDITION
    Recommended torque 0,6 Nm
    Working voltage signal 63 V AC/DC
    Sealing material FPM
    IP rating IP67 in mated condition
    Insulation resistance >=100M Ohm
    Cable color Black
    Wire cross section 1,5 mm²
    max. working temperature +80° C
    Shielding Unshielded
    Mating cycles >=100
    Current rating signal 12 A at +40°C
    min. working temperature -30° C
    Pollution degree 3/2
    General Data
    Style Overmoulded Connectors
    Design single ended
    Coding T-coded
    Size A-side M12x1
    Locking type Screwable
    Material Data
    Housing color Grey
    Housing material TPU, UL94
    Insulator material PA, UL 94
    Coupling nut /-screw material Zinc die cast
    Coupling nut /-screw plating Nickel
    Signal contact material Copper alloy
    Plating signal contact (mating area) Gold over nickel
    Certificates
    Cable UL listed Yes
    Specifications
    Standard rated voltage IEC 61076-2-111
    Standard insulation resistance IEC 60512
    Standard IP rating IEC 60529
    Standard mating cycles IEC 60512-9a
    Standard current rating IEC 61076-2-111
    Standard pollution degree IEC 60664-1
