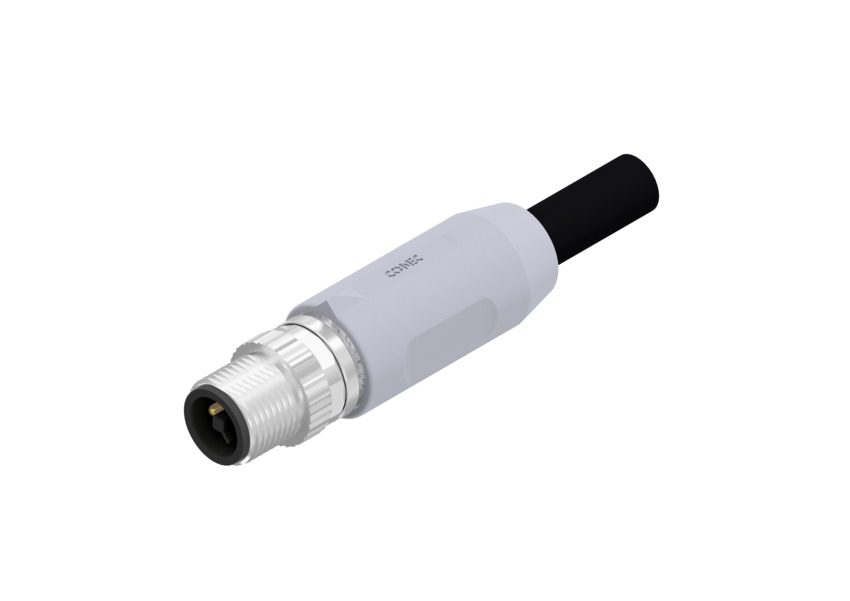

M12 Power maschio diritto T-coded 12A TPU nero
M12 Power maschio diritto T-coded 12A TPU nero
TPU nero
UL 20549
Download datasheet
43-17581 SAL-12T-RS4-2/K1 M12 T-coded male axial 4 pos. TPU, UL Black, 4×1,5mm², 2 m
43-19087 SAL-12T-RS3-2/K1 M12 T-coded male axial 3 pos. TPU, UL Black, 3×1,5mm², 2 m
Descrizione
Technical Data
Working voltage note VOLTAGE MAY BE PRESENT ONLY IN MATED CONDITION
Recommended torque 0,6 Nm
Working voltage signal 63 V AC/DC
Sealing material FPM
IP rating IP67 in mated condition
Insulation resistance >=100M Ohm
Cable color Black
Wire cross section 1,5 mm²
max. working temperature +80° C
Shielding Unshielded
Mating cycles >=100
Current rating signal 12 A at +40°C
min. working temperature -30° C
Pollution degree 3/2
General Data
Style Overmoulded Connectors
Design single ended

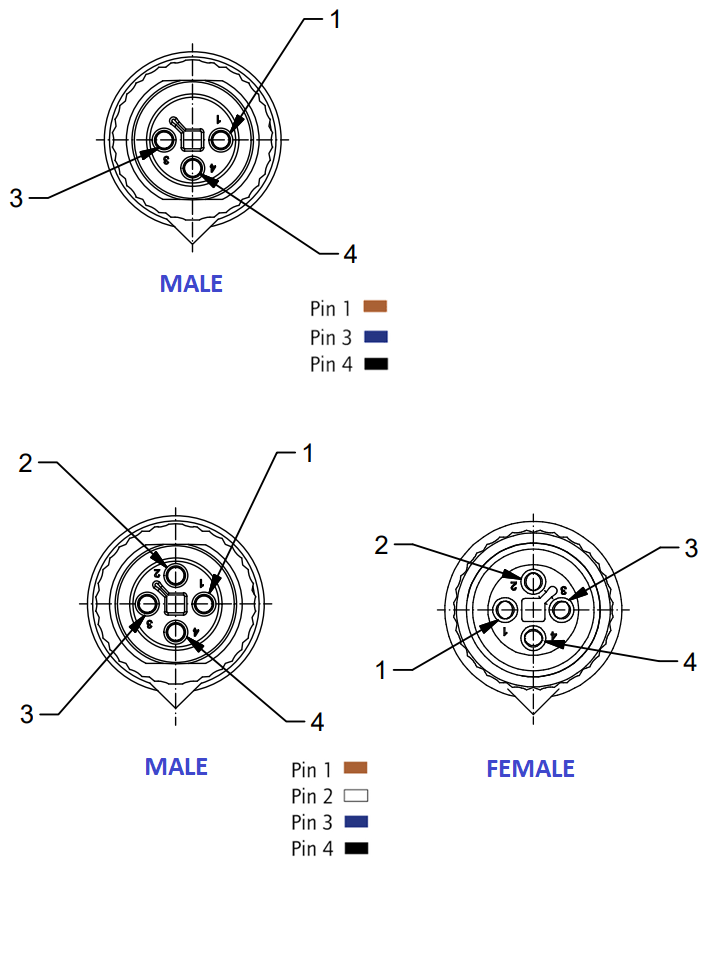

Coding T-coded
Size A-side M12x1
Locking type Screwable
Material Data
Housing color Grey
Housing material TPU, UL94
Insulator material PA, UL 94
Coupling nut /-screw material Zinc die cast
Coupling nut /-screw plating Nickel
Signal contact material Copper alloy
Plating signal contact (mating area) Gold over nickel
Certificates
Cable UL listed Yes
Specifications
Standard rated voltage IEC 61076-2-111
Standard insulation resistance IEC 60512
Standard IP rating IEC 60529
Standard mating cycles IEC 60512-9a
Standard current rating IEC 61076-2-111
Standard pollution degree IEC 60664-1
