M12 Power pannello maschio L-coded 16A flangiato
M12 Power pannello maschio L-coded 16A flangiato
Download datasheet

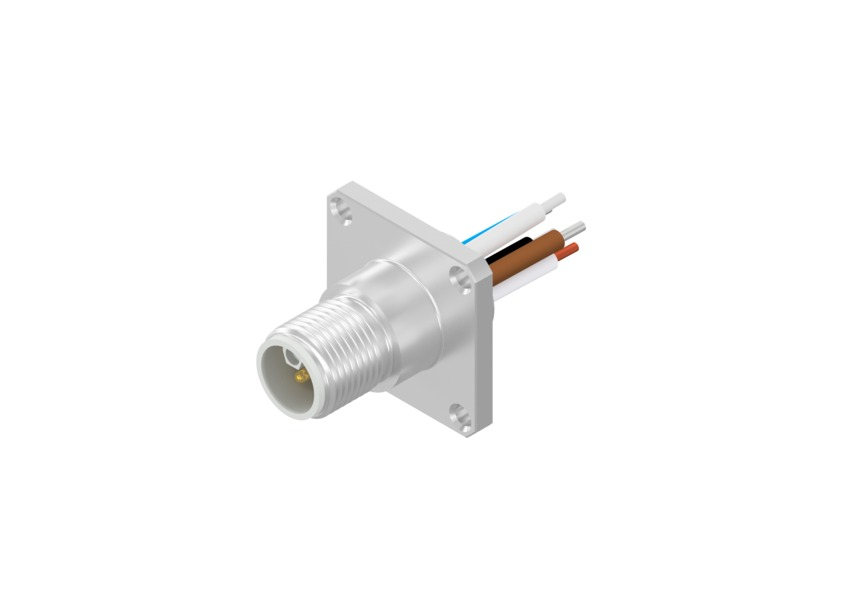

43-03267 SAL-12L-FSV4FE-0,5-25 M12 L-coded male axial square and sealing 4+FE pos. front panel mounting, wire termination, 0,5 m
CONDIVIDI / SHARE
Descrizione
General Data
Product type Power connectors
Style Sockets
Size A-side M12x1
Design Square flange 25 mm
Size/Number of positions 4-pos+FE
Coding L-coded
Type A-side [ Female, Male] Male connector axial
IP range A-side IP67
Mounting options [e.g. front/back panel mounting etc.] Front panel mounting
Screw connection [e.g. PG9, M16 etc.] M12x1
Length cable/wire 0,5 m
Technical Data
Working voltage signal 63 V
Current rating signal 16 A
min. working temperature -40° C
max. working temperature +85° C
Cable quality [e.g. PP, PVC, TPE etc.] PVC
Wire cross section AWG14
