    M12 Power pannello retro maschio S-coded 12A


    Download datasheet

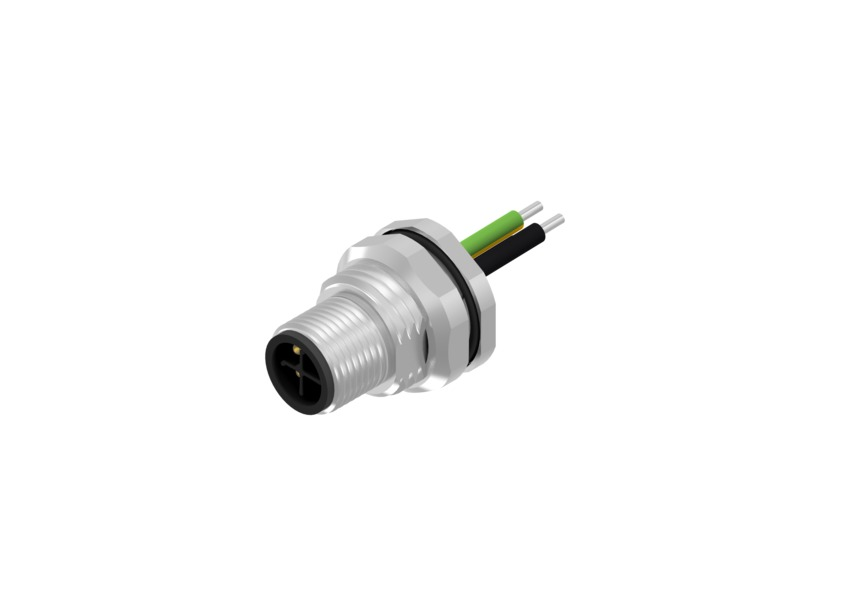

    43-02415 SAL – 12SC – FSH2PE – 0,5 M12 S-coded male axial M16x1,5mm 3 pos. back panel mounting, wire termination, 0,5 m
    43-02398 SAL – 12SC – FSH3PE – 0,5 M12 S-coded male axial M16x1,5mm 4 pos. back panel mounting, wire termination, 0,5 m

    CONDIVIDI / SHARE

    Descrizione

    General Data
    Size A-side M12x1
    Design Sockets
    Type A-side [ Female, Male] Male connector axial
    Length cable/wire 0,5 m
    Contact type Male connector axial
    Coding S-coded
    Mounting options [e.g. front/back panel mounting etc.] Back panel mounting
    Locking type Thread fixed
    Termination signal [e.g. clamp, crimp, solder, SMT] Wire
    Screw connection [e.g. PG9, M16 etc.] M16x1,5
    Style Sockets
    Technical Data
    Shielding Unshielded
    Wire cross section 1,5 mm²
    min. working temperature -30° C
    max. working temperature +85° C
    Working voltage signal 630 V
    IP rating IP67
    Current rating signal 12 A
    Mating cycles >=100
    Wire isolation material PVC
    Recommended torque 0,6 Nm
    Material Data
    Insulator material PA 6.6 UL 94 V-0, black
    Insulator color Black
    Housing material Brass
    Housing color Nickel
    Signal contact material Copper alloy
    Plating signal contact (mating area) Gold over nickel
    Specifications
    Standard current rating IEC 61076-2-111
    Standard mating cycles IEC 60512-9a
    Standard IP rating IEC 60529
    Standard insulation resistance IEC 60512
    Standard pollution degree IEC 60664-1
    Standard rated voltage IEC 61076-2-111
