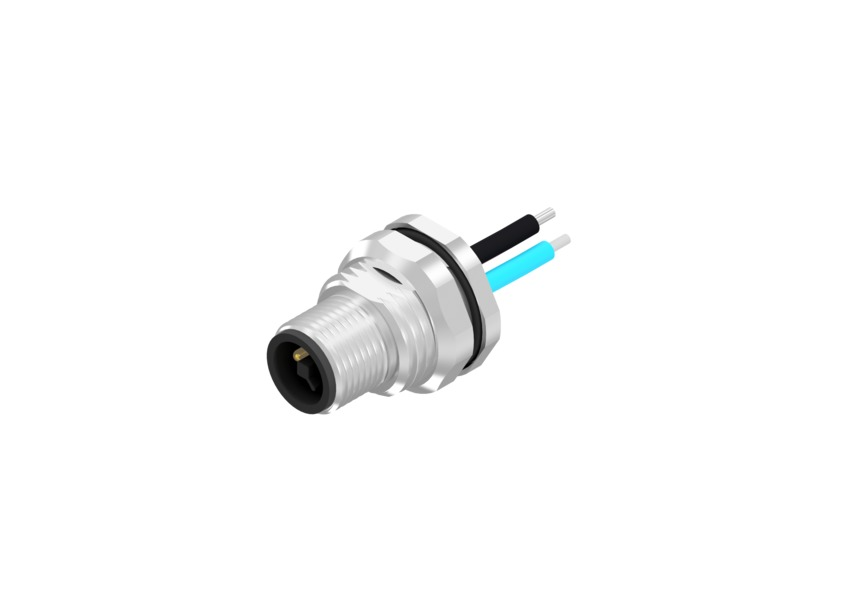

Descrizione

General Data
Size A-side M12x1
Design Sockets
Type A-side [ Female, Male] Male connector axial
Length cable/wire 0,5 m
Contact type Male connector axial
Coding T-coded
Mounting options [e.g. front/back panel mounting etc.] Back panel mounting
Locking type Thread fixed
Termination signal [e.g. clamp, crimp, solder, SMT] Wire
Screw connection [e.g. PG9, M16 etc.] M16x1,5
Style Sockets
Technical Data
Shielding Unshielded
Wire cross section 1,5 mm²
min. working temperature -30° C
max. working temperature +85° C
Working voltage signal 63 V
IP rating IP67
Current rating signal 12 A
Mating cycles >=100
Wire isolation material PVC
Recommended torque 0,6 Nm
Insulation resistance >=100M Ohm
Material Data
Insulator material PA 6.6 UL 94 V-0, black
Insulator color Black
Housing material Brass
Housing color Nickel
Signal contact material Copper alloy
Plating signal contact (mating area) Gold over nickel
Specifications
Standard current rating IEC 61076-2-111
Standard mating cycles IEC 60512-9a
Standard IP rating IEC 60529
Standard insulation resistance IEC 60512
Standard pollution degree IEC 60664-1
Standard rated voltage IEC 61076-2-111
