    M16 cablare maschio 90° saldare IP40






    Download datasheet

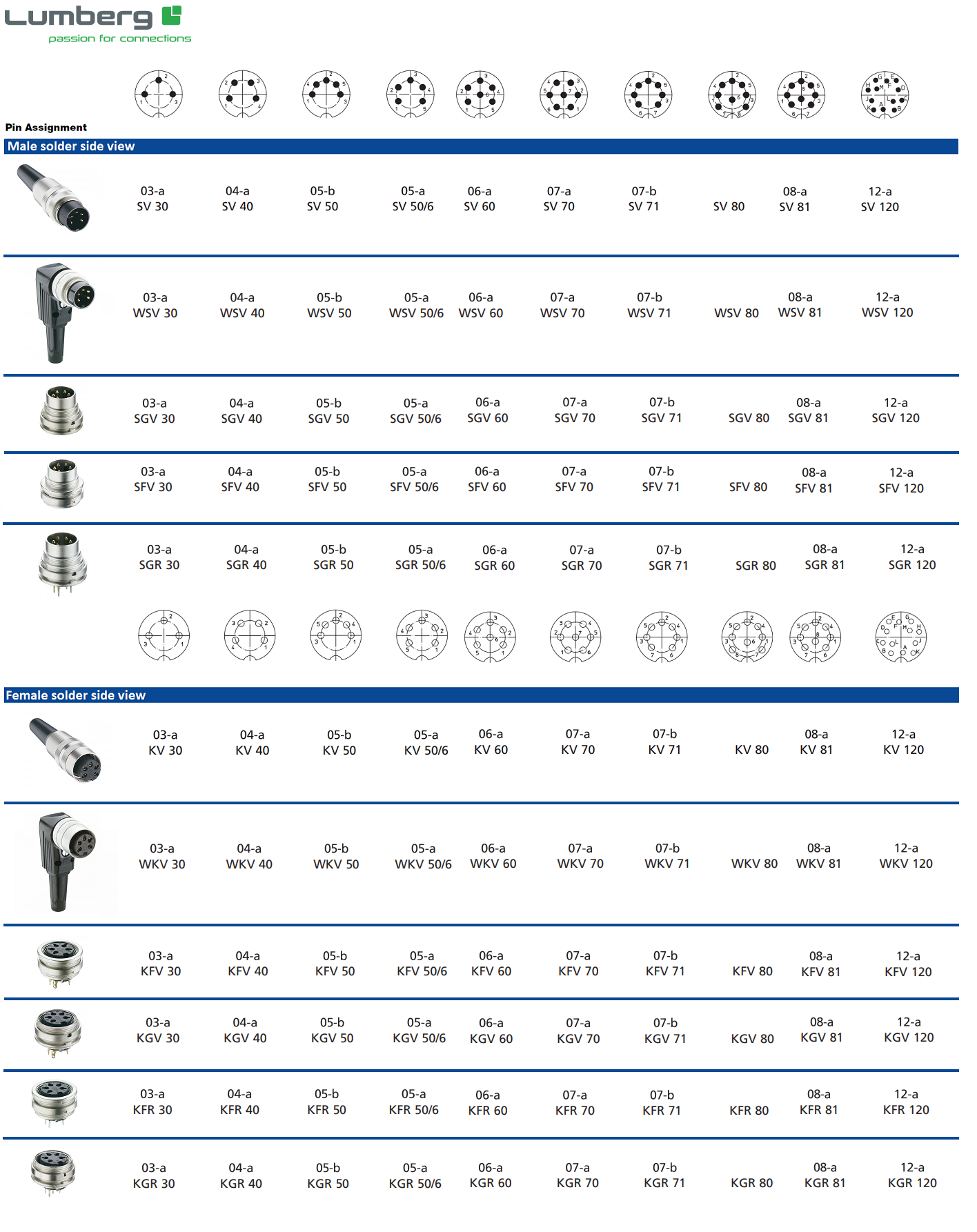

    WSV 30 Series 03 field attachable connector IP40, 3 poles male 90°, wire section 0,75mmq, cable diameter 6mm, solder termination
    WSV 40 Series 03 field attachable connector IP40, 4 poles male 90°, wire section 0,75mmq, cable diameter 6mm, solder termination
    WSV 50 Series 03 field attachable connector IP40, 5 poles male 90°, wire section 0,75mmq, cable diameter 6mm, solder termination
    WSV 50/6 Series 03 field attachable connector IP40, 5 poles male 90°, wire section 0,75mmq, cable diameter 6mm, solder termination
    WSV 60 Series 03 field attachable connector IP40, 6 poles male 90°, wire section 0,75mmq, cable diameter 6mm, solder termination
    WSV 70 Series 03 field attachable connector IP40, 7 poles male 90°, wire section 0,75mmq, cable diameter 6mm, solder termination
    WSV 71 Series 03 field attachable connector IP40, 7 poles male 90°, wire section 0,75mmq, cable diameter 6mm, solder termination
    WSV 80 Series 03 field attachable connector IP40, 8 poles male 90°, wire section 0,75mmq, cable diameter 6mm, solder termination
    WSV 81 Series 03 field attachable connector IP40, 8 poles male 90°, wire section 0,75mmq, cable diameter 6mm, solder termination
    WSV 120 Series 03 field attachable connector IP40, 12 poles male 90°, wire section 0,25mmq, cable diameter 6mm, solder termination

    CONDIVIDI / SHARE

    Descrizione

    Technical Data

    Temperature range:-40 °C/+85 °C

    Materials
    Insulating body:PA GF, V-0 according to UL94

    Contact pin:CuZn, silver-plated and flash gold-plated (3-8 poles)
    CuZn, pre-nickel and gold-plated (12 poles)

    Housing:CuZn, nickel-plated

    Mechanical data
    Protection class:IP40 *1

    1) according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart

    Connectable conductors for solder area
    Section:≤ 0.75 mm² (AWG 20)
    (3-8 poles)
    ≤ 0.25 mm² (AWG 24)
    (12 poles)

    Cable diameter:4–6 mm

    Electrical data (at Tamb 20 °C)
    Rated current:5 A (Tamb 40 °C, 3-8 poles)
    3 A (Tamb 40 °C, 12 poles)

    Rated voltage:with pollution degree 1:
    300 V (versions 30, 40, 50/6, 60, 70)
    100 V (versions 50, 71, 80, 81)
    160 V (Polbild 120)
    with pollution degree 2:
    250 V (versions 30, 40)
    32 V (versions 50, 71, 80, 81)
    160 V (versions 50/6, 60, 70, 120)

    Rated impulse voltage:1500 V (versions 30, 40, 50/6, 60, 70, 120)
    500 V (versions 50, 71, 80, 81)
