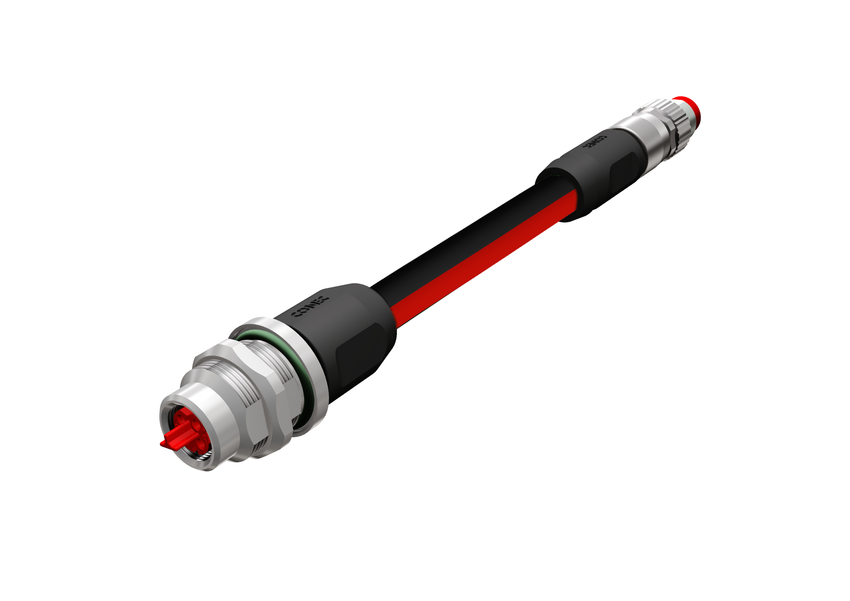

M8 pannello sch. retro femmina-maschio diritto P-coded con cavo in PUR
M8 pannello sch. retro femmina-maschio diritto P-coded con cavo in PUR
Download datasheet
42-01687 SAL-8P-FKH4.78-8P-RS4.78-0,3/G6/034 M8 P-coded female-male axial 4 pos. mount connector with cable, EtherCAT P, 2x2xAWG22 PUR shielded, Cat 5e, L=0,3m
42-01688 SAL-8P-FKH4.78-8P-RS4.78-1,5/G6/034 M8 P-coded female-male axial 4 pos. mount connector with cable, EtherCAT P, 2x2xAWG22 PUR shielded, Cat 5e, L=1,5m
Descrizione
Technical Data
General Data
Product type BUS Systems
Style Overmoulded Connectors
Performance Cat 5e
Bus systems EtherCAT P
Size A-side M8x1
Design Panel mount connector with cable
Size/Number of positions 4-pos.+PE
Coding P-coded
Type A-side [ Female, Male] Female connector axial
IP range A-side IP67
Size B-side [e.g. M8, M12, 7/8″ etc.] M8x1
Type B-side [Female, male] Male connector axial
IP range B-side IP67
Mounting options [e.g. front/back panel mounting etc.] Back panel mounting
Screw connection [e.g. PG9, M16 etc.] M8x1
Length cable/wire 0,3m-1,5m
Certificates
Technical Data
Working voltage signal 50 V AC/ 60 V DC
Current rating signal 4 A at +40°C
min. working temperature -30° C
max. working temperature +70° C
Shielding Shielded
Cable quality [e.g. PP, PVC, TPE etc.] PUR shielded, Cat 5e
Wire cross section 2x2xAWG22
