M8 screw back panel mounting female A-coded THR h=6mm
M8 screw back panel mounting female A-coded THR h=6mm
M8x1 Sockets THR
Download datasheet

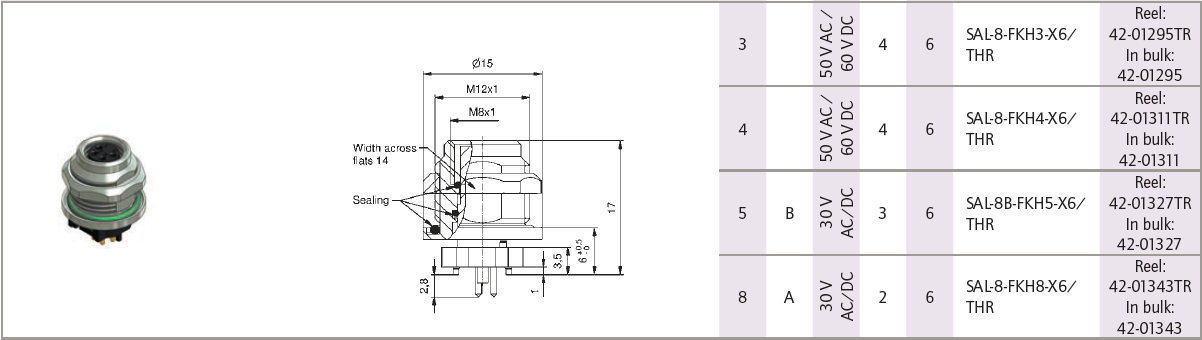

42-01295 SAL-8-FKH3-X6/THR M8 A-coded female axial back panel mounting 3 pos. THR, unshielded, h=6mm, 50 V AC / 60 V DC, 4A
Download datasheet
42-01311 SAL-8-FKH4-X6/THR M8 A-coded female axial back panel mounting 4 pos. THR, unshielded, h=6mm, 50 V AC / 60 V DC, 4A
Download datasheet
42-01343 SAL-8-FKH8-X6/THR M8 A-coded female axial back panel mounting 8 pos. THR, unshielded, h=6mm, 30 V AC / 30 V DC, 2A
Descrizione
Technical Data
Shielding Unshielded
General Data
Size/Number of positions 3/4/8-pos.
Contact type Female connector axial
Coding A-coded
Mounting options [e.g. front/back panel mounting etc.] Back panel mounting
Locking type Screwable
Termination signal [e.g. clamp, crimp, solder, SMT] THR
Installation height 6 mm
Style Sockets
Material Data
Insulator material LCP GF
Insulator color Black
Housing material copper alloy
Housing color Nickel
Signal contact material Copper alloy
Plating signal contact (mating area) Gold over nickel
Specifications
Standard current rating IEC 61076-2-104
