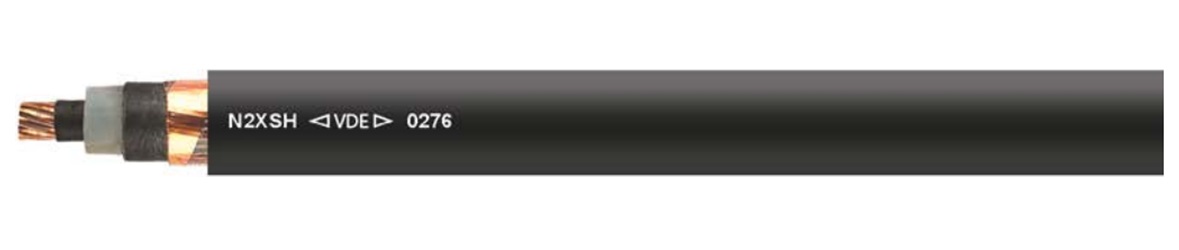

N2XSH 6/10 kV, 12/20 kV, 18/30 kV
Descrizione
Temperature range
flexible -5°C to +70°C
fixed -5°C to +70°C
Permissible operating temperature of the conductor
+90°C
Nominal voltage
U0/U 6/10kV, 12/20kV, 18/30kV
Informazioni aggiuntive
| Approval | VDE |
|---|---|
| Properties | Halogen free |
Suitable for indoor installation and in cable ducts, outdoors and in the ground only as protected installation, as well as for installation on cable trays for industrial systems, switch-boards and power stations. Good laying properties favour laying even with difficult routing. The inner conducting layer between the conductor and the XLPE insulation and the firmly bonded outer conducting layer on the XLPE insulation assure a construction free of partial discharges with high operational reliability.
