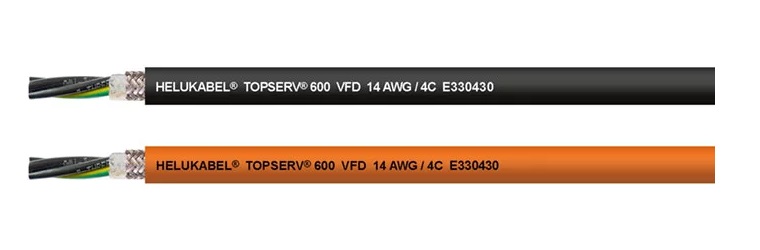

TOPSERV® 600 VFD drag chain
Descrizione
Temperature range
UL/CSA TC -40°C to +90°C
flexing +5°C to +50°C
static -40°C to +105°C
Nominal voltage
UL/CSA TC 600V
UL WTTC/Flexible Motor Supply 1000V
Informazioni aggiuntive
| Approval | CSA, EAC, HL, UL |
|---|---|
| Properties | Cable tray, Chemicals resistant, Coolant resistant, Oil resistant, UV resistant |
Datasheet
File Number:
E330430: TC, TC-ER, TC-ER-HL
E330431: MTW
E330432: WTTC
E336111: CL2, CL2P, CL2R, CL2X, CL3, CL3P, CL3R, CL3X, PLTC
E336112: ITC
Highly flexible, extremely oil-resistant, thermoset-insulated motor supply cable for modern servomotors; the double-shielding with special aluminum foil (100% coverage) and tinned copper braid (approx. 85% coverage) provides effective protection against electrical disturbances and the resultant failures. XLPE insulation makes this compliant with the requirements outlined in the current edition of NFPA 79 Chapter 4. The special TPE jacket is extremely resistant to oil, coolants and solvents making it the perfect solution for industrial applications. Open, unprotected installation in cable trays and from cable trays to the machine, as well as in pipes and direct burial are approved.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product conforms to EC Low-Voltage Directive 2006/95/EC.
