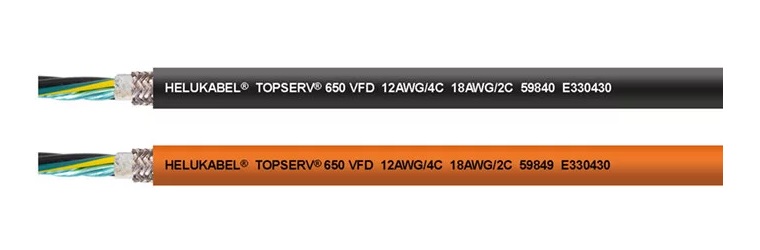

    TOPSERV® 650 VFD drag chain

    XLPE insulation, EMC-preferred type, highly flexible motor power supply w/ control conductors, oil-resistant, NFPA 79 Ch. 4

    Dynamics characteristics



    Temperature range
    UL/CSA TC -40°C to +90°C
    flexing +5°C to +50°C
    static -40°C to +105°C

    Nominal voltage
    UL/CSA TC 600V
    UL WTTC/Flexible Motor Supply 1000V

    Informazioni aggiuntive


    CSA, EAC, HL, UL


    Cable tray, Chemicals resistant, Coolant resistant, Oil resistant, UV resistant

    File Number:
    E330430: TC, TC-ER, TC-ER-HL
    E330431: MTW
    E330432: WTTC
    E336111: CL2, CL2P, CL2R, CL2X, CL3, CL3P, CL3R, CL3X, PLTC
    E336112: ITC

    Highly flexible, extremely oil-resistant, thermoset-insulated motor supply cable for modern servomotors; the double-shielding with special aluminum foil (100% coverage) and tinned copper braid (approx. 85% coverage) provides effective protection against electrical disturbances and the resultant failures. XLPE insulation makes this compliant with the requirements outlined in the current edition of NFPA 79 Chapter 4. The special TPE jacket is extremely resistant to oil, coolants and solvents making it the perfect solution for industrial applications. Open, unprotected installation in cable trays and from cable trays to the machine, as well as in pipes and direct burial are approved.
    EMC = Electromagnetic compatibility
    To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
    CE = The product conforms to EC Low-Voltage Directive 2006/95/EC.
